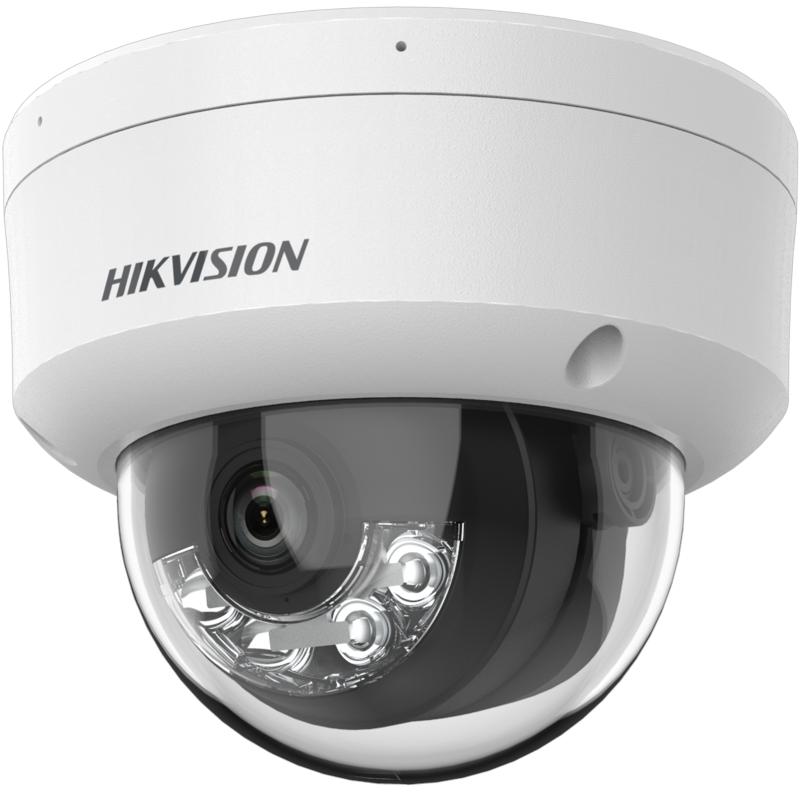

4 MP Smart hybrid light with Darkfighter S Fixed Mini Dome Network Camera

Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
Supports 1.5 Tops computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources
High quality imaging with 4 MP resolution
Clear imaging against strong back light due to 130 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Smart Dual-Light: advanced technology with long range
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67) and vandal resistant (IK10)

Available models:

DS-2CD3146G2H-LIS(2.8mm)

DS-2CD3146G2H-LIS(4mm)

DS-2CD3146G2H-LISU(2.8mm)

DS-2CD3146G2H-LISU(4mm)

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°
4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
Lens MountM12
Iris TypeFixed
ApertureF1.0
Depth of Field
2.8 mm: 1.9 m to ∞
4 mm: 2.5 m to ∞

DORI
DORI
2.8mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m
4mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m

Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*The third stream is supported under certain settings.
Fourth Stream
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
*The fourth stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
*The third stream and the fourth stream are supported under certain settings.
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)5 fixed regions for main stream and sub-stream
Target CroppingYes

Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters SwitchYes
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR,Defog
SNR≥ 52 dB
Wide Dynamic Range (WDR)130 dB
Privacy Mask4 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone-U: Yes
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm1 input, 1 output (max. 12 VDC, 30 mA)
Reset KeyYes
Power Output12 VDC, max. 100 mA

Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning
Smart EventUnattended baggage detection,object removal detection, scene change detection,audio exception detection,defocus detection

Deep Learning Function
Face CaptureYes
People CountingYes
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting detection,
Support alarm triggered by specified target types (human and vehicle)

General
Power
12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 8.5 W
MaterialMetal
DimensionØ121.5 mm × 97.6 mm (Ø4.78″ × 3.84″)
Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
WeightApprox. 550 g (1.2 lb.)
With Package WeightApprox. 800 g (1.8 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General FunctionHeartbeat,mirror,anti-banding,flash log,password reset via email,pixel counter
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
EnvironmentCE-RoHS: 2011/65/EU
ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
