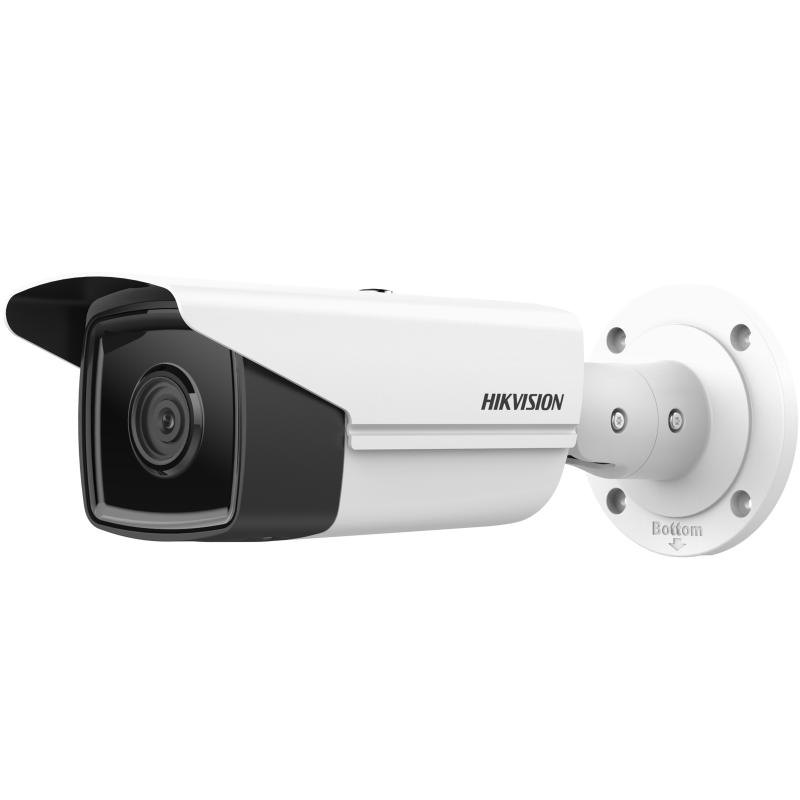

4 MP AcuSense Fixed Bullet Network Camera

Lens
Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6

DORI
DORI
2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
6 mm: D: 120 m, O: 47 m, R: 24 m, I: 12 m

Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
Yes
Region of Interest (ROI)
1 fixed region for main stream and sub-stream

Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile G), ISAPI, SDK
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters Switch
Yes
Image Settings
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR

Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection
Supports human and vehicle targets classification
Face detection
Linkage
Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, sned email

General
Power
-2I:
12 VDC ± 25%, 0.71 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, 36 V to 57 V, 0.27 A to 0.17 A, max. 9.5 W
-4I:
12 VDC ± 25%, 1.0 A, amx. 11.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Material
Aluminum alloy body
Sun shield, IR cover: plastic
Dimension
Ø105 × 299.7 mm (Ø4.1″ × 11.8″)
Package Dimension
386 × 156 × 155 mm (15.2″ × 6.2″ × 6.2″)
Weight
Approx. 1070 g (2.4 lb.)
With Package Weight
Approx. 1589 g (3.5 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, password reset via e-mail, pixel counter

Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)

DS-2CD2T43G2-2I
