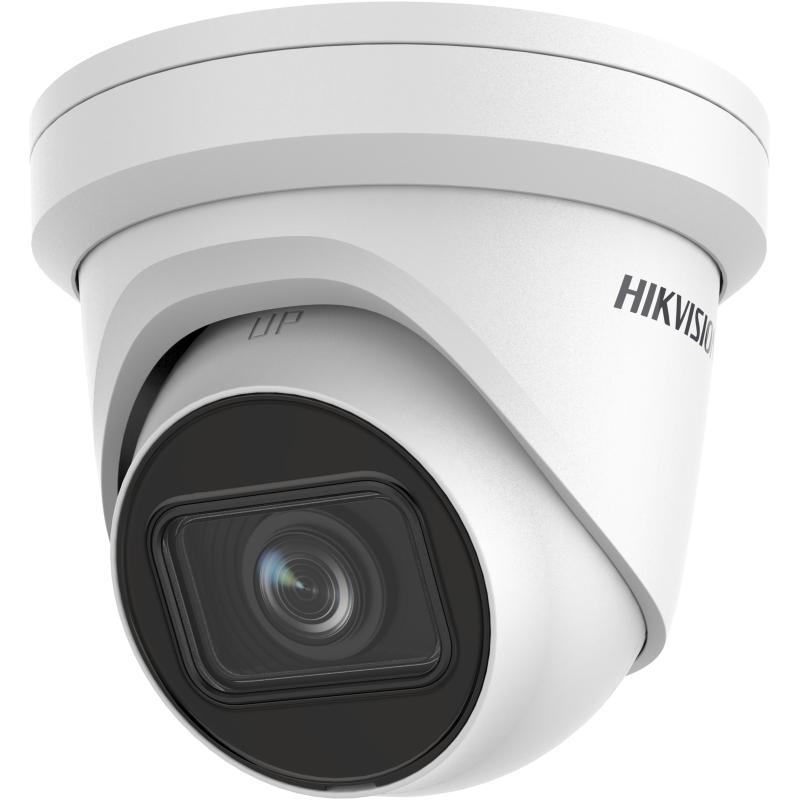

CAMERA HIKVISION DS-2CD2H23G2-IZS
2 MP AcuSense Motorized Varifocal Turret Network Camera
- High quality imaging with 2 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Clear imaging against strong backlight due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Focus on human and vehicle targets classification based on deep learning
Available models:
DS-2CD2H23G2-IZS(2.8-12mm)
- Camera
- Image Sensor
1/2.8″ Progressive Scan CMOS - Max. Resolution
1920 × 1080 - Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR - Shutter Time
1/3 s to 1/100,000 s - Day & Night
IR cut filter - Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens Type
Varifocal lens, motorized lens, 2.8 to 12 mm - Focal Length & FOV
2.8 to 12 mm, horizontal FOV 106.6° to 31.7°, vertical FOV 54.7° to 17.7°, diagonal FOV 130.3° to 36.4° - Lens Mount
Ø14 - Iris Type
Fixed - Aperture
F1.6
- DORI
- DORI
2.8 to 12 mm: D: 44.1 m to 137.9 m, O: 17.5 m to 54.7 m, R: 8.8 m to 27.5 m, I: 4.4 m to 13.8 m
- Illuminator
- Supplement Light Type
IR - Supplement Light Range
Up to 40 m - Smart Supplement Light
Yes - IR Wavelength
850 nm
- Video
- Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720) - Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) - Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) - Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 - Video Bit Rate
32 Kbps to 8 Mbps - H.264 Type
Baseline Profile/Main Profile/High Profile - H.265 Type
Main Profile - Bit Rate Control
CBR/VBR - Scalable Video Coding (SVC)
H.264 and H.265 encoding - Region of Interest (ROI)
1 fixed region for main stream and sub-stream
- Audio
- Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC - Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) - Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz - Environment Noise Filtering
Yes
- Network
- Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, 802.1X, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets - Simultaneous Live View
Up to 6 channels - API
ONVIF (Profile S, Profile G), ISAPI, SDK - User/Host
Up to 32 users
3 user levels: administrator, operator, and user - Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface - Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported. - Client
iVMS-4200, Hik-Connect, Hik-Central - Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch
Yes - Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser - Day/Night Switch
Day, Night, Auto, Schedule - Wide Dynamic Range (WDR)
120 dB - Image Enhancement
BLC, HLC, 3D DNR - SNR
≥ 52 dB - Privacy Mask
4 programmable polygon privacy masks
- Interface
- Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port - On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB - Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium - Alarm
1 input, 1 output (max. 12 VDC, 30 mA) - Reset Key
Yes
- Event
- Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception - Smart Event
Face detection - Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
- Deep Learning Function
- Perimeter Protection
Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
- General
- Power
12 VDC ± 25%, 0.92 A, max. 11 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W - Dimension
Ø138.3 mm × 126 mm (Ø5.5″ × 5.0″) - Package Dimension
170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″) - Weight
Approx. 830 g (1.8 lb.) - With Package Weight
Approx. 1115 g (2.5 lb.) - Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) - Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) - Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian - General Function
Heartbeat, mirror, password reset via email, pixel counter, anti-banding
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) - Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) - Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) - Protection
IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
