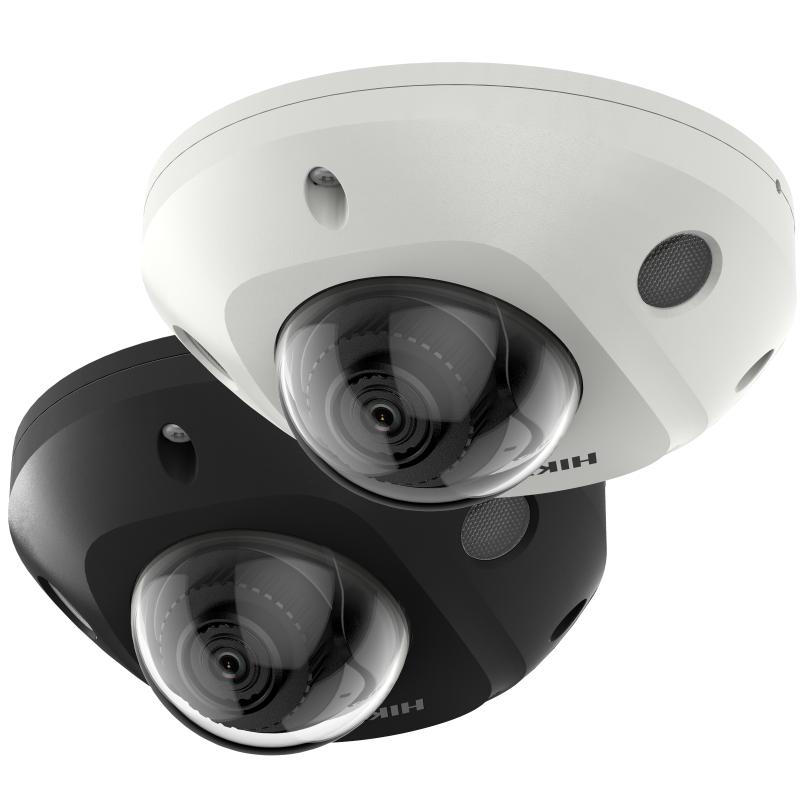

6 MP AcuSense Built-in Mic Fixed Mini Dome Network Camera

Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°;
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
Depth of Field
2.8 mm: 1.8 m to ∞;
4 mm: 3.1 m to ∞

DORI
DORI
2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m;
4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m

Video
Main Stream
50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region for main stream and sub-stream

Audio
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes

Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
4 programmable polygon privacy masks

Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD card, up to 512 GB
Built-in Microphone
Yes
Audio
-IS:
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
-IS: 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key
Yes

Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
Scene change detection
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning (-IS), trigger alarm output (-IS)

General
Power
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: 802.3af, Class 3, max. 7 W
Material

Base: aluminum, cover: plastic
Dimension
Ø110 mm × 57.4 mm (Ø 4.3″ × 2.3″)
Package Dimension
134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
Weight
Approx. 375 g (0.8 lb.)
With Package Weight
Approx. 610 g (1.3 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker

Approval
EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
Safety
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)
IK8 (IEC 62262:2002)

DS-2CD2566G2-IS (C)
