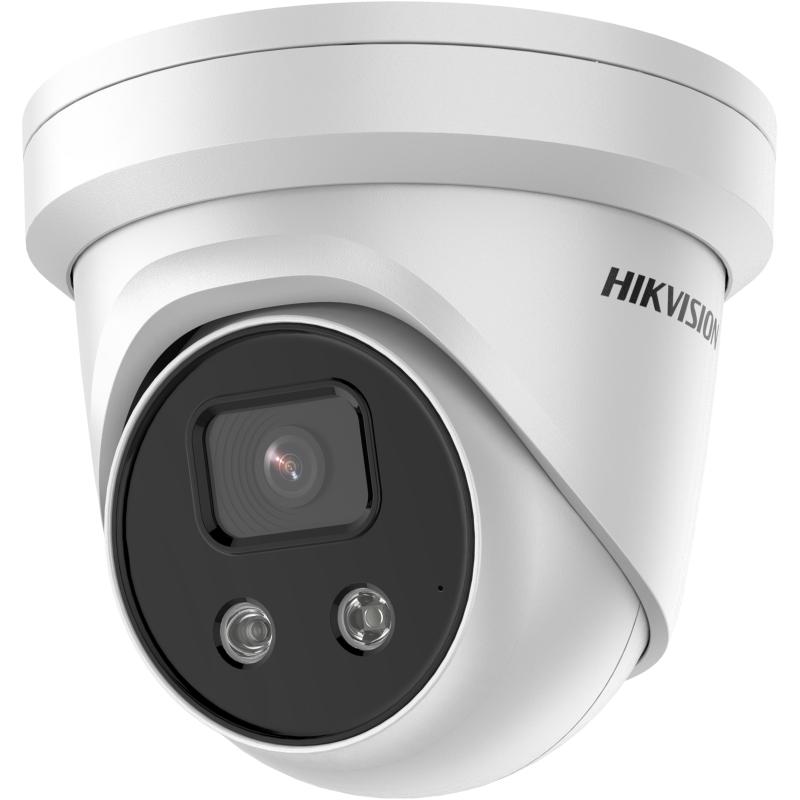

CAMERA HIKVISION DS-2CD2386G2-I(U)
4K AcuSense Fixed Turret Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Built-in microphone for real-time audio security(-U)
- Water and dust resistant (IP67)
- Camera
- Image Sensor
1/1.8″ Progressive Scan CMOS - Max. Resolution
3840 × 2160 - Min. Illumination
Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR - Shutter Time
1/3 s to 1/100,000 s - Day & Night
IR cut filter - Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional - Focal Length & FOV
2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60° - Lens Mount
M12 - Iris Type
Fixed - Aperture
F1.6
- DORI
- DORI
2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m
- Illuminator
- Supplement Light Type
IR - Supplement Light Range
Up to 30 m - Smart Supplement Light
Yes - IR Wavelength
850 nm
- Video
- Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) - Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) - Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings. - Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings. - Video Bit Rate
32 Kbps to 16 Mbps - H.264 Type
Baseline Profile/Main Profile/High Profile - H.265 Type
Main Profile - Bit Rate Control
CBR/VBR - Scalable Video Coding (SVC)
H.264 and H.265 encoding - Region of Interest (ROI)
1 fixed region for main stream and sub-stream - Target Cropping
Yes
- Audio
- Audio Type
-U: mono sound - Audio Compression
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC - Audio Bit Rate
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) - Audio Sampling Rate
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz - Environment Noise Filtering
-U: Yes
- Network
- Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP - Simultaneous Live View
Up to 6 channels - API
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK - User/Host
Up to 32 users. 3 user levels: administrator, operator and user - Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface - Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported. - Client
iVMS-4200, Hik-Connect, Hik-Central - Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters Switch
Yes - Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser - Day/Night Switch
Day, Night, Auto, Schedule - Wide Dynamic Range (WDR)
120 dB - SNR
≥ 52 dB - Image Enhancement
BLC, HLC, 3D DNR
- Interface
- Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port - On-Board Storage
Built-in micro SD/SDHC/SDXC slot, up to 256 GB - Built-in Microphone
-U: Yes - Reset Key
Yes
- Event
- Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception - Smart Event
Scene change detection - Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
- Deep Learning Function
- Face Capture
Yes
- General
- Power
12 VDC ± 25%, 0.48 A, max. 5.8 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W - Dimension
Ø138.3 mm × 126.3 mm (Ø5.4″ × 5″) - Package Dimension
170 mm × 170 mm × 150 mm (6.9″ × 6.9″ × 5.9″) - Weight
Approx. 740 g (1.6 lb.) - With Package Weight
Approx. 1020 g (2.2 lb.) - Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) - Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) - Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian - General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) - Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) - Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) - Protection
IP67 (IEC 60529-2013)
DS-2CD2386G2-IU (C)
