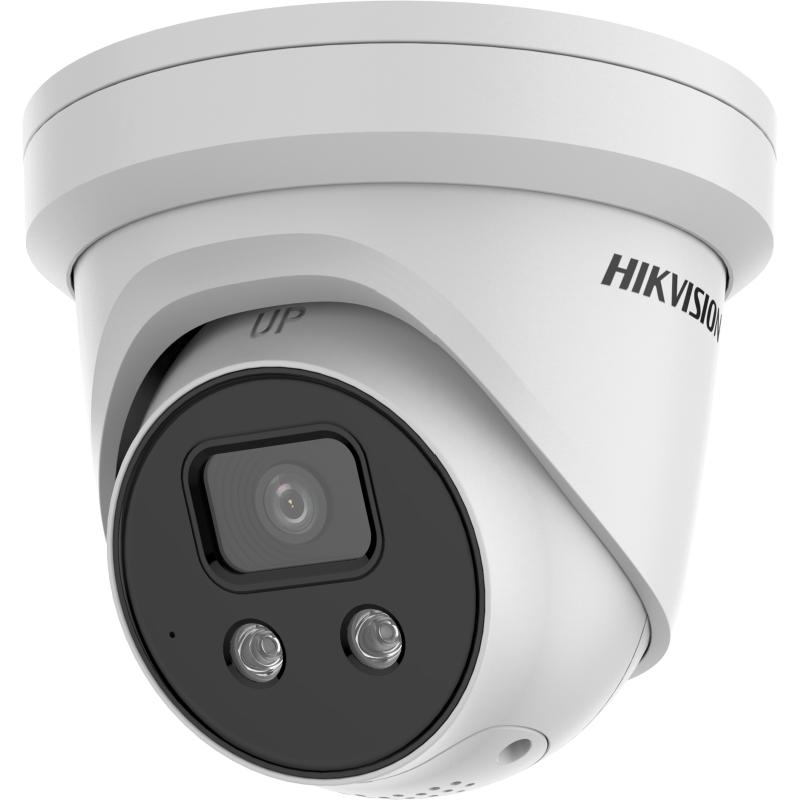

CAMERA HIKVISION DS-2CD2386G2-ISU/SL
4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- Camera
- Image Sensor
1/1.8″ Progressive Scan CMOS - Min. Illumination
Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR - Shutter Speed
1/3 s to 1/100,000 s - Slow Shutter
Yes - P/N
P/N - Wide Dynamic Range
120 dB - Day & Night
IR cut filter - Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° - Max. Resolution
3840 × 2160
- Lens
- Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional - Iris Type
Fixed - Focal Length & FOV
2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60° - Aperture
F1.6 - Lens Mount
M12
- DORI
- DORI
2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m
- Illuminator
- Supplement Light Type
IR - IR Range
Up to 30 m - IR Wavelength
850 nm - Smart Supplement Light
Yes - Visual Alarm
Yes - Supplement Light Range
Up to 30 m
- Video
- Max. Resolution
3840 × 2160 - Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) - Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) - Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings. - Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings. - Video Bit Rate
32 Kbps to 16 Mbps - H.264 Type
Baseline Profile/Main Profile/High Profile - H.265 Type
Main Profile - H.264+
Main stream supports - H.265+
Main stream supports - Bit Rate Control
CBR/VBR - Scalable Video Coding (SVC)
H.264 and H.265 encoding - Region of Interest (ROI)
1 fixed region for main stream and sub-stream - Target Cropping
Yes
- Audio
- Audio Type
Mono sound - Environment Noise Filtering
Yes - Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz - Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC - Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
- Network
- Simultaneous Live View
Up to 6 channels - API
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK - Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP - User/Host
Up to 32 users. 3 user levels: administrator, operator and user - Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface - Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported. - Client
iVMS-4200, Hik-Connect, Hik-Central - Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- SNR
≥ 52 dB - Target Cropping
Yes - Day/Night Switch
Day, Night, Auto, Schedule - Image Enhancement
BLC, HLC, 3D DNR - Image Parameters Switch
Yes - Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser - Wide Dynamic Range (WDR)
120 dB
- Interface
- Alarm
1 input, 1 output (max. 24 VDC/24 VAC, 500 mA) - Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium;
1 built-in speaker, 1 built-in microphone - Built-in Microphone
Yes - Built-in Speaker
Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB. - On-Board Storage
Built-in micro SD/SDHC/SDXC slot, up to 256 GB - Hardware Reset
Yes - Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception - Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Supports human and vehicle targets classification
Scene change detection - Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
- Deep Learning Function
- Face Capture
Yes - Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Supports human and vehicle targets classification
- General
- Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light - Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian - General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter - Software Reset
Yes - Firmware Version
V5.5.112 - Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) - Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) - Power Supply
12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3 - Power Consumption and Current
12 VDC, 0.75 A, max. 9 W
PoE (802.3af, 36 V to 57 V), 0.28 A to 0.17 A, max. 10 W - Power Interface
Ø5.5 mm coaxial power plug - Camera Material
Metal except for trim ring - Camera Dimension
Ø138.3 mm× 124.5 mm (Ø5.4″ × 4.9″) - Package Dimension
170 mm × 170 mm × 150 mm (6.9″ × 6.9″ × 5.9″) - Camera Weight
Approx. 840 g (1.9 lb.) - With Package Weight
Approx. 1160 g (2.6 lb.) - Power
12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W - Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) - Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ) - Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) - Protection
IP67 (IEC 60529-2013)
DS-2CD2386G2-ISU/SLDiscontinued
