HIKVISION, Network Cameras

DS-2CD2347G3-LIS2UY/S(L)(RB)

Đăng vào bởi admin
DS-2CD2347G3-LIS2UY/S(L)(RB)

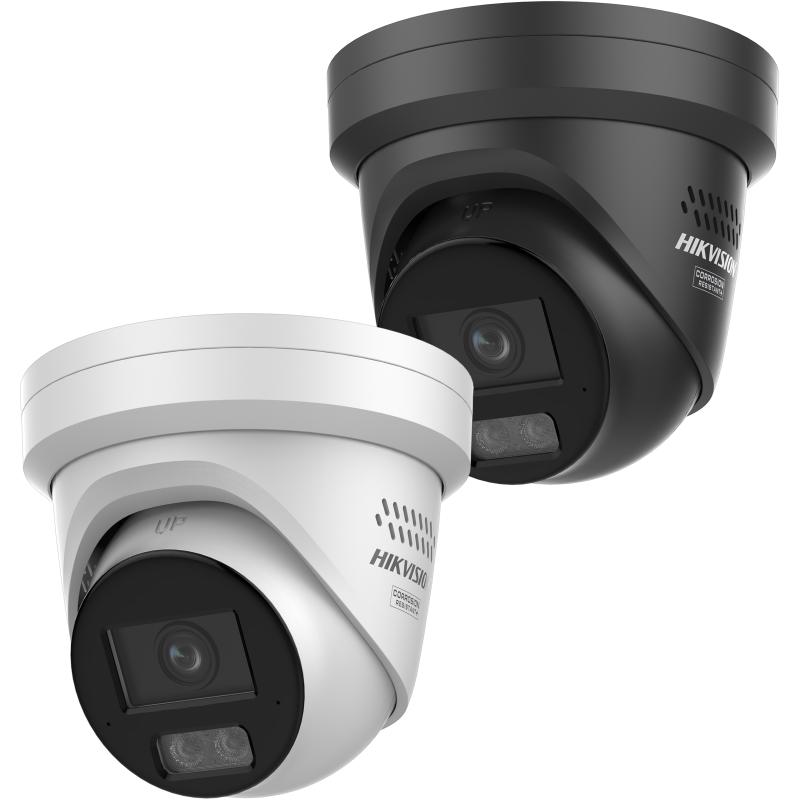

CAMERA HIKVISION DS-2CD2347G3-LIS2UY/S(L)(RB)



4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera



  • HikAI-ISP for excellent noise reduction effect
  • 24/7 colorful imaging via ColorVu technology
  • Scene-adaptive WDR
  • Focus on Person and Vehicle classification based on deep learning
  • Built-in arrayed dual-microphone for real-time high quality audio security
  • Provide real-time security via built-in two-way audio
  • Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
  • Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
  • Water and dust resistant (IP67)
  • Audio and alarm interface available
  • Active strobe light and audio alarm to warn intruders off



  • Camera
  • Image Sensor
    1/1.8″ Progressive Scan CMOS
  • Max. Resolution
    2688 × 1520
  • Min. Illumination
    Color: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time
    1 s to 1/100,000 s
  • Day & Night
    IR cut filter
  • Angle Adjustment
    Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
  • Lens
  • Lens Type
    Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV
    2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°
    4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°
  • Lens Mount
    M16
  • Iris Type
    Fixed
  • Aperture
    F1.0
  • Depth of Field
    2.8 mm: 2.5 m to ∞
    4 mm: 3.1 m to ∞
  • DORI
  • DORI
    2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m
    4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m
  • Illuminator
  • Supplement Light Type
    White Light
  • Supplement Light Range
    Up to 30 m
  • Smart Supplement Light
    Yes
  • IR Wavelength
    850 nm
  • Video
  • Main Stream
    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream
    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream
    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    *The third stream is supported under certain settings.
  • Video Compression
    Main stream: H.265/H.264/H.264+/H.265+,
    Sub-stream: H.265/H.264/MJPEG,
    Third stream: H.265/H.264,
    *Third stream is supported under certain settings.
  • Video Bit Rate
    32 Kbps to 8 Mbps
  • H.264 Type
    Baseline Profile,Main Profile,High Profile
  • H.265 Type
    Main Profile
  • Bit Rate Control
    CBR,VBR
  • Scalable Video Coding (SVC)
    H.264 and H.265 encoding
  • Region of Interest (ROI)
    1 fixed region for main stream
  • Audio
  • Audio Type
    Mono sound
  • Audio Compression
    G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate
    64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate
    8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise Filtering
    Yes
  • Network
  • Protocols
    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Simultaneous Live View
    Up to 6 channels
  • API
    ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host
    Up to 32 users
    3 user levels: administrator, operator, and user
  • Security
    Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Network Storage
    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
  • Client
    iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser
    Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+,
    Local service: Chrome 80+, Firefox 80+, Edge 89+
  • Image
  • Image Parameters Switch
    Yes
  • Image Settings
    Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch
    Day,Night,Auto,Schedule
  • Image Enhancement
    BLC,HLC,3D DNR,Distortion Correction,Defog
  • SNR
    ≥ 52 dB
  • Wide Dynamic Range (WDR)
    130 dB
  • Image Stabilization
    EIS
  • Privacy Mask
    4 programmable polygon privacy masks
  • Interface
  • Ethernet Interface
    1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage
    Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in Speaker
    Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
  • Audio
    Built-in Microphone: Arrayed dual-microphone
    1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
    1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm
    1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Reset Key
    Yes
  • Event
  • Basic Event
    Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart Event
    Scene change detection
  • Linkage
    Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light flashing
  • Deep Learning Function
  • Face Capture
    Yes
  • Perimeter Protection
    Line crossing, intrusion, region entrance, region exiting
    Support alarm triggering by specified target types (human and vehicle)
  • General
  • Power
    12 VDC ± 25%, 1.29 A, max. 15.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
    PoE: IEEE 802.3at, Class 4, max. 17 W
  • Material
    Cover: metal, main body: metal
  • Dimension
    Ø138.3 mm × 115.4 mm (Ø5.4″ × 4.5″)
  • Package Dimension
    170 mm × 170 mm × 160 mm (6.7″ × 6.7″ × 6.3″)
  • Weight
    Approx. 820 g (1.8 lb.)
  • With Package Weight
    Approx. 1200 g (2.6 lb.)
  • Storage Conditions
    -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions
    -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General Function
    Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
  • Language
    33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Flashing Light
    /SRB model: Red and Blue Light
    /SL model: White Light
  • Approval
  • EMC
    CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
    RCM: AS/NZS CISPR 32: 2015,
    IC: ICES-003: Issue 7,
    KC: KN32: 2015, KN35: 2015
  • Safety
    UL: UL 62368-1,
    CB: IEC 62368-1: 2014+A11,
    CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment
    CE-RoHS: 2011/65/EU
  • Protection
    IP67: IEC 60529-2013
  • Anti-Corrosion Protection
    NEMA 4X (NEMA 250-2018)



DS-2CD2347G3-LIS2UY/SL
