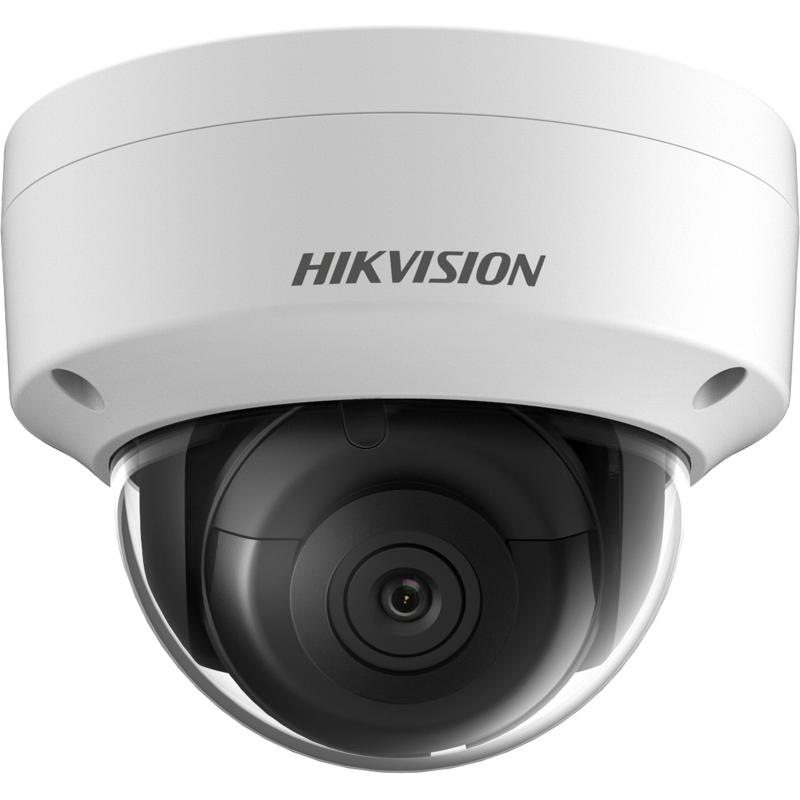

CAMERA HIKVISION DS-2CD2126G2-I(SU)
2 MP AcuSense Fixed Dome Network Camera
- High quality imaging with 2 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle classification based on deep learning
- -SU: Built-in microphone for real-time audio security, Audio and alarm interface available
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Camera
- Image Sensor
1/2.8″ Progressive Scan CMOS - Max. Resolution
1920 × 1080 - Min. Illumination
Color: 0.002 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR - Shutter Time
1/3 s to 1/100,000 s - Day & Night
IR cut filter - Angle Adjustment
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lens
- Lens Type
Fixed focal lens, 2.8 and 4 mm optional - Focal Length & FOV
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129°
4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102° - Lens Mount
M12 - Iris Type
Fixed - Aperture
F1.4 - Depth of Field
2.8 mm: 1.1 m to ∞
4 mm: 1.2 m to ∞
- DORI
- DORI
2.8 mm: D: 44 m, O: 17 m, R: 9 m, I: 4 m
4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m
- Illuminator
- Supplement Light Type
IR - Supplement Light Range
Up to 30 m - Smart Supplement Light
Yes - IR Wavelength
850 nm
- Video
- Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720) - Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) - Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
*Third stream is supported under certain settings. - Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 - Video Bit Rate
32 Kbps to 8 Mbps - H.264 Type
Baseline Profile,Main Profile,High Profile - H.265 Type
Main Profile - Bit Rate Control
CBR,VBR - Scalable Video Coding (SVC)
H.264 and H.265 encoding - Region of Interest (ROI)
1 fixed region for main stream and sub-stream
- Audio
- Audio Compression
NA - Audio Bit Rate
NA - Audio Sampling Rate
NA - Environment Noise Filtering
NA
- Network
- Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets - Simultaneous Live View
Up to 6 channels - API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP - Smooth Streaming
Yes - User/Host
Up to 32 users
3 user levels: administrator, operator, and user - Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address) - Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported. - Client
iVMS-4200,Hik-Connect,Hik-Central - Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters Switch
Yes - Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser - Day/Night Switch
Day,Night,Auto,Schedule - Wide Dynamic Range (WDR)
120 dB - SNR
≥ 52 dB - Image Enhancement
BLC,HLC,3D DNR - Privacy Mask
Yes
- Interface
- Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port - On-Board Storage
Built-in memory card slot, support microSD card, up to 512 GB - Built-in Microphone
NA - Audio
NA - Alarm
NA - Reset Key
Yes
- Event
- Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception - Smart Event
Scene change detection - Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
- Deep Learning Function
- Face Capture
Yes - Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
- Power
12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 7.5 W - Material
Metal - Dimension
Ø110.8 × 84.7 mm (Ø4.4″ × 3.3″) - Package Dimension
134 × 134 × 108 mm (5.3″ × 5.3″ × 4.3″) - Weight
Approx. 550 g (1.2 lb.) - With Package Weight
Approx. 800 g (1.8 lb.) - Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) - Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) - Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian - General Function
Anti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Approval
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
KC: KN32: 2015, KN35: 2015 - Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1 - Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006 - Protection
IP67: IEC 60529-2013;IK10: IEC 62262:2002
DS-2CD2126G2-I (D)
