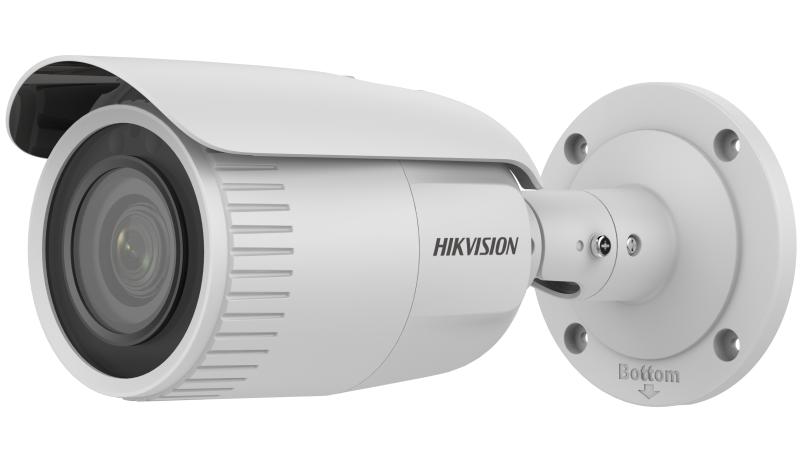

2 MP Varifocal Bullet Network Camera

Available models:

DS-2CD1623G0-I(2.8-12mm)

DS-2CD1623G0-IZ(2.8-12mm)

DS-2CD1623G0-IZ(2.8-12mm)(C)

DS-2CD1623G0-IZS(2.8-12mm)(C)

Lens
Lens TypeVarifocal Lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm: horizontal FOV 96° to 36°, vertical FOV 51° to 20°, diagonal FOV 113° to 42°
Lens MountØ14
Iris TypeFixed
ApertureF1.6

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720),
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region of Interest (ROI)1 fixed region for main stream

Audio
Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate-S: 8 kHz/16 kHz
Environment Noise Filtering-S: Yes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchAuto, Schedule, Day, Night
Image EnhancementBLC, 3D DNR

Event
Basic EventMotion detection, video tampering alarm, exception
Linkage-S: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture, trigger alarm output

General
Power
12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug
PoE: (802.3af, Class 3, 36 V to 57 V), 0.23 A to 0.36 A, max. 12.9 W
Camera DimensionØ105 mm × 244.4 mm (4.1″ × 9.6″)
Package Dimension315 mm × 137 mm × 141 mm (12.4″ × 5.4″ × 5.6″)
Camera WeightApprox. 1035 g (2.3 lb.)
With Package WeightApprox. 1550 g (3.4 lb.)
Storage Conditions-30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Other
IP67 (IEC 60529-2013)
