HIKVISION, Network Cameras

DS-2CD1027G2H-LIU(F)

Đăng vào bởi admin

CAMERA HIKVISION

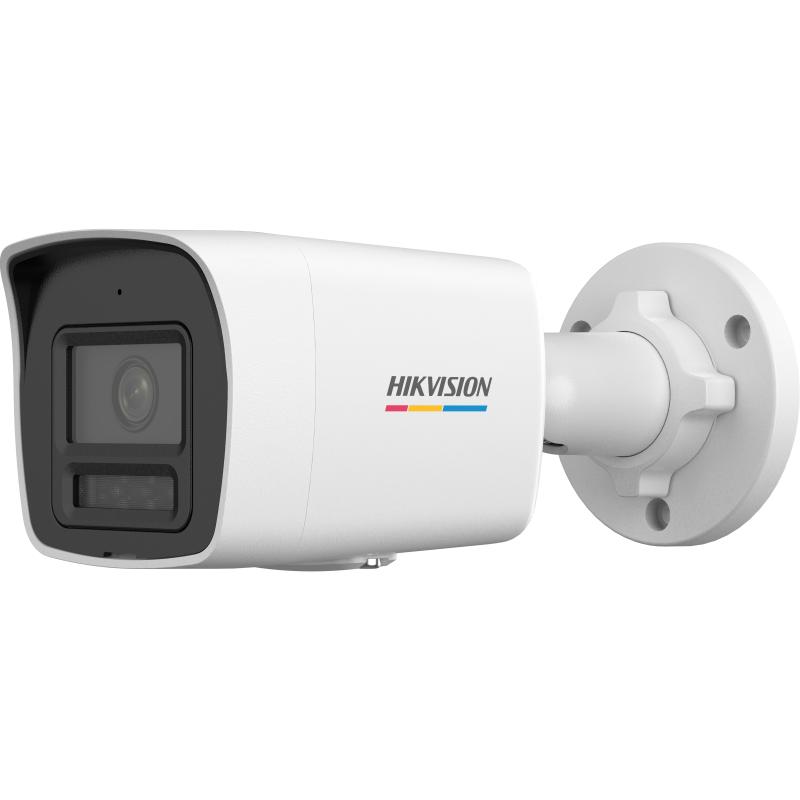

DS-2CD1027G2H-LIU(F)

2 MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology
  • Support on-board storage up to 512 GB (SD card slot) (Optional)
  • Built-in microphone for real-time audio security
  • Water and dust resistant (IP67)

  • Camera
  • Image Sensor
    1/2.8″ Progressive Scan CMOS
  • Max. Resolution
    1920 × 1080
  • Min. Illumination
    Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time
    1/3 s to 1/100,000 s
  • Day & Night
    IR cut filter
  • Angle Adjustment
    Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lens
  • Lens Type
    Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV
    2.8 mm, horizontal FOV 115°, vertical FOV 60°, diagonal FOV 143°
    4 mm, horizontal FOV 94°, vertical FOV 50°, diagonal FOV 110°
  • Lens Mount
    M12
  • Iris Type
    Fixed
  • Aperture
    F1.0
  • DORI
  • DORI
    2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m
    4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
  • Illuminator
  • Supplement Light Type
    IR,White Light
  • Supplement Light Range
    Up to 30 m
  • Smart Supplement Light
    Yes
  • IR Wavelength
    850 nm
  • Video
  • Main Stream
    50 Hz: 25 fps (1920 × 1080, 1280 × 720)
    60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream
    50 Hz: 25 fps (640 × 480, 640 × 360)
    60 Hz: 24 fps (640 × 480, 640 × 360)
  • Video Compression
    Main stream: H.265+/H.265/H.264+/H.264,
    Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate
    32 Kbps to 16 Mbps
  • H.264 Type
    Baseline Profile,Main Profile,High Profile
  • H.265 Type
    Main Profile
  • Bit Rate Control
    CBR,VBR
  • Region of Interest (ROI)
    1 fixed region for main stream
  • Audio
  • Audio Type
    Mono sound
  • Audio Compression
    G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate
    64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate
    8 kHz/16 kHz
  • Environment Noise Filtering
    Yes
  • Network
  • Protocols
    IPv4，IPv6，TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
  • Simultaneous Live View
    Up to 6 channels
  • API
    Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
  • User/Host
    Up to 32 users
    3 user levels: administrator, operator, and user
  • Security
    Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Client
    iVMS-4200,Hik-Connect
  • Web Browser
    Plug-in required live view: IE 10, IE 11,
    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image
  • Image Settings
    Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch
    Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)
    Digital WDR
  • SNR
    ≥ 52 dB
  • Image Enhancement
    BLC,HLC,3D DNR
  • Privacy Mask
    4 programmable polygon privacy masks
  • Interface
  • Ethernet Interface
    1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage
    -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in Microphone
    Yes,1 built-in microphone
  • Reset Key
    -F: Yes
  • Event
  • Basic Event
    Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Linkage
    Upload to memory card (-F model supports), trigger recording (-F model supports), upload to FTP,notify surveillance center,send email,trigger capture
  • General
  • Power
    12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
    PoE: IEEE 802.3af, Class 3, max. 6.5 W
  • Material
    Front cover: metal, body: plastic, bracket: plastic
  • Dimension
    69.8 mm × 67.9 mm × 172.9 mm (2.7″ × 2.7″ × 6.8″)
  • Package Dimension
    150 mm × 150 mm × 141 mm (5.91″ × 5.91″ × 5.55″)
  • Weight
    Approx. 550 g (1.2 lb.)
  • With Package Weight
    Approx. 800 g (1.8 lb.)
  • Storage Conditions
    -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions
    -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language
    English, Ukrainian
  • General Function
    Heartbeat,anti-banding,mirror,password protection,password reset via email
  • Approval
  • EMC
    CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
    RCM: AS/NZS CISPR 32: 2015,
    IC: ICES-003: Issue 7
  • Safety

    CB: IEC 62368-1: 2014+A11,
    CE-LVD: EN 62368-1: 2014/A11: 2017,
    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • Environment
    CE-RoHS: 2011/65/EU,
    WEEE: 2012/19/EU,
    Reach: Regulation (EC) No 1907/2006
  • Protection
    IP67: IEC 60529-2013
