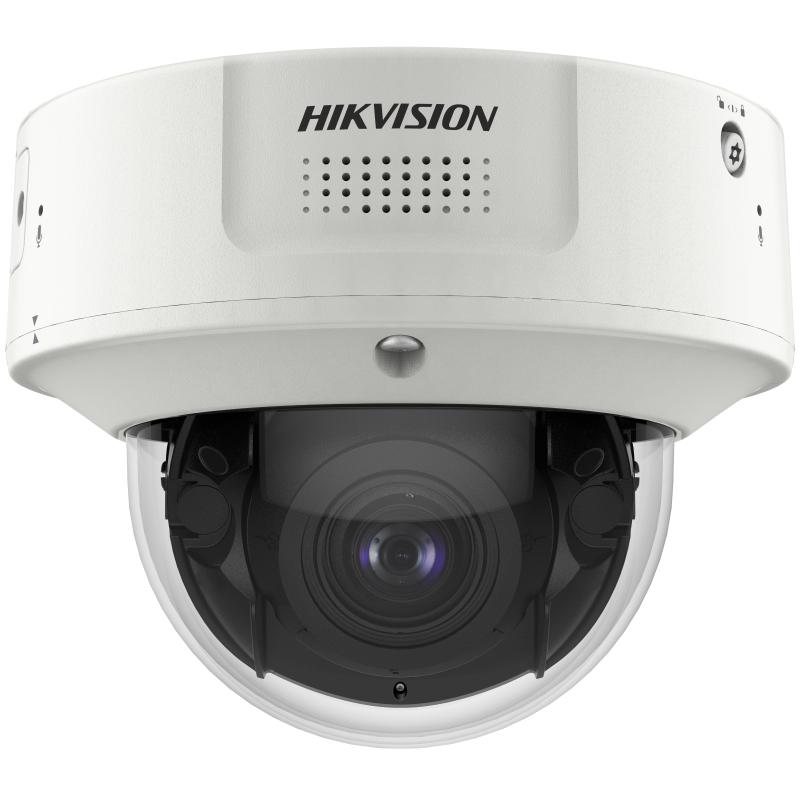

CAMERA HIKVISION iDS-2CD7186G2-IZ(H)S(Y)

8MP DeepinView Moto Varifocal Dome Camera

High quality imaging with 8 MP resolution
Excellent low-light performance via DarkFighter 2.0 technology
Capture vehicles and humans of different speed clearly via ShotN technology
Clear imaging against strong back light due to 140 dB AWDR technology
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
High frame rate, up to 8MP@60fps and 2MP@120fps
Built-in dual-mic and speaker for real-time audio security
Built-in G-sensor for vibration detection
Built-in power meter for historical power statistics

Camera
Image Sensor
1/1.8″ Progressive Scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter,Blue glass module (less ghost phenomenon)
Angle Adjustment
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens
Lens Type
Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
Focal Length & FOV
2.8 to 12 mm:
horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
8 to 32 mm:
horizontal FOV 41.8° to 15°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1°
Focus
Auto,Semi-auto,Manual
Iris Type
P-iris
Aperture
2.8 to 12 mm: F1.38 to F2.53, 8 to 32 mm: F1.7 to F1.73

DORI
DORI
2.8 to 12 mm:
D (Detect): 220.0 m, O (Observe): 87.3 m, R (Recognize): 44.0 m, I (Identify): 22.0 m
8 to 32 mm:
D (Detect): 580.0 m, O (Observe): 230..2 m, R (Recognize): 116.0 m, I (Identify): 58.0 m
The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.

Illuminator
Supplement Light Type
IR
Supplement Light Range
2.8 to 12 mm: Monitoring: 40 m; 8 to 32 mm: Monitoring: 60 m
Smart Supplement Light
Yes
IR Wavelength
850 nm

AI Open Platform
Model Specification
Up to 4 models,
Model type: detection model, classification model, mixed model (detection model and classification model)

Video
Main Stream
Monitoring mode:
50 Hz: up to 50 fps (3840 × 2160, 3072 × 1728, 2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080)
60 Hz: up to 60 fps (3840 × 2160, 3072 × 1728, 2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080)
*High frame rate is supported under monitoring mode only.
smart mode:
50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
4 fixed regions for each stream
Target Cropping
Yes
e-PTZ
Support Patrol and Auto Tracking settings

Audio
Audio Type
Mono sound
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering
Yes

Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live View
Up to 20 channels
API
ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Client
iVMS-4200,Hik-Connect,Hik-Central
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)
140 dB
Image Enhancement
BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask
8 programmable polygon privacy masks
SNR
≥ 52 dB
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Image Stabilization
EIS

Interface
Video Output
1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Built-in Microphone
Yes, 2 built-in microphones
Built-in Speaker
Max. power consumption: 1.5 W, max. sound pressure level: 98 dB, speaker range: 10 m
Audio
1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Alarm
2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key
Yes
Power Output
12 VDC, max. 100 mA

Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection
Smart Event
scene change detection,audio exception detection,defocus detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function
Multi-target-type Detection
Supports simultaneous detection and capture of human body, face, and vehicle,
Gets 7 face features,
Gets 13 human body features,
Gets 2 vehicle features,
Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle,
Supports dynamic mosaic mask
Face Capture
Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second,
Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,
Uploads face with background and closed-up face pictures,
Supports best shot and quick shot for capture mode,
Supports dynamic mosaic mask,
Gets 7 face features
Face Comparison
Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total,
Supports face library encryption
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering
People Counting
Supports Multi-Dimension People Counting,
Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),
Supports real-time uploading and uploading by statistic cycle,
Supports generating daily, weekly, monthly or annually reports,
Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,
Supports face feature deduplication,
Supports people flow data replenishment
Queue Management
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
Supports real-time data uploading and scheduled data uploading
Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
Heat Map
A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,
Two report types are available, space heat map and time heat map line chart.
Hard Hat Detection
Detects up to 30 human targets simultaneously
Supports up to 4 shield regions
Metadata
Intrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
Regional People Counting
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection
Supports parameter settings: alarm times per exception, alarm interval, first alarm delay
Supports searching real-time number of people
People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading
Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)
Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
On/Off Duty Detection
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: absence detection, on/off duty detection
Supports parameter settings: person on duty, absence duration

General
Power
12 VDC ± 20%, 1.25 A, max. 14.75 W,three-core terminal block,reverse polarity protection,
24 VAC ± 20%, 1.05 A, max. 14.1 W,
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.37 A to 0.27 A, max. 15.7 W
Material
Base: metal, cover: metal
Dimension
Ø144.3 mm × 114.1 mm (Ø5.7″ × 4.5″)
Package Dimension
244 mm × 174 mm × 173 mm (9.6″ × 6.9″ × 6.8″)
Weight
Approx. 1100 g (2.43 lb.)
With Package Weight
Approx. 1482 g (3.27 lb.)
Storage Conditions
-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
With -H: -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing),
Without -H: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Heartbeat,one-key reset,mirror,password protection
Cable Length
0.25 m (0.8 ft.)
Heater
-H: Yes
Device Management
Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces

Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013;IK10: IEC 62262:2002
Anti-Corrosion Protection
-Y: NEMA 4X (NEMA 250-2018)
Automotive and Railway
EN50121-4
Other
PVC FREE
