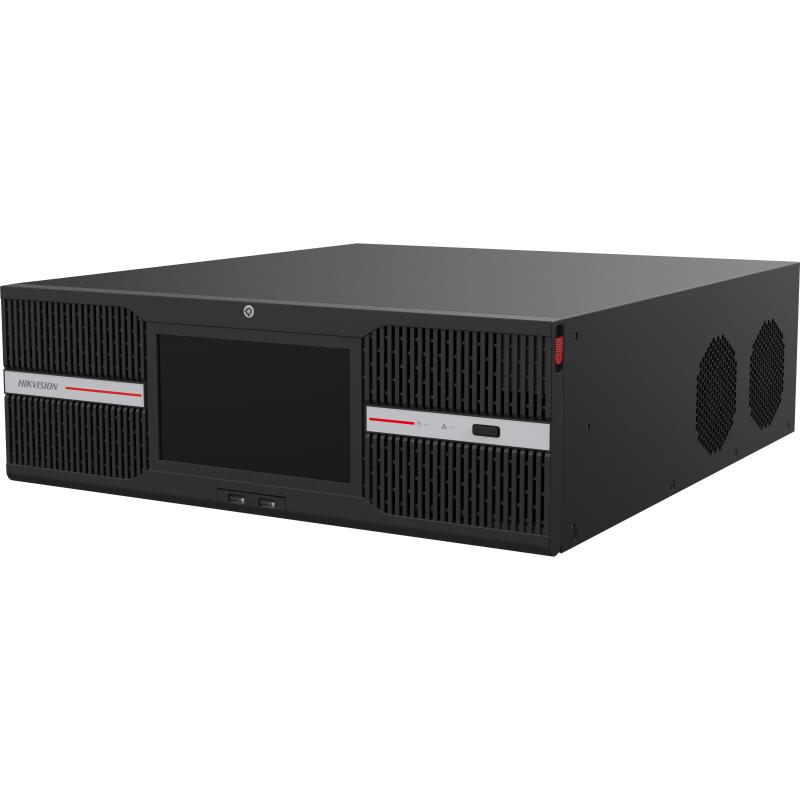

Network Video Recorder HIKVISION DS-96128NXI-S16R(LCD)

S Series NVR with AcuSense

• Up to 32×1080p decoding capacity
• H.265+/H.265/H.264+/H.264 video formats
• Up to 256-ch IP cameras can be connected
• Intelligent analytics supports facial recognition, perimeter protection, video structuralization, AcuSearch
• Up to 8-ch IP speakers can be connected
• Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
• HDMI video output at up to 8K resolution
• Redundant power supply

• Intelligent Analytics
• AI by NVRFacial recognition, perimeter protection, video structuralization
• AI by CameraFacial recognition, perimeter protection, video structuralization, AcuSearch, motion detection2.0, ANPR, people counting, VCA

• Facial Recognition
• Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
• Face Picture LibraryUp to 64 face picture libraries, up to 300,000 face pictures in list library (each picture ≤ 4 MB, total capacity ≤ 10 GB)
• Face Picture Comparison (Captured from Camera)16-ch

  Comparison speed: 24 pictures per second

• Facial Detection and Analytics PerformanceSimultaneous mode: 8-ch, up to 2 MP

  independent mode: 4-ch, up to 2 MP.

• AcuSearch
• By NVRUp to 32-ch
• By CameraAll channels , up to 345,600 targets per day

  Note: The camera should enable AcuSearch function.

• Perimeter Protection
• By NVRSimultaneous mode: 8-ch, up to 2 MP

  independent mode: 4-ch, up to 2 MP.

• By CameraAll channels

• Video Structuralization
• Structured AnalysisSimultaneous mode: 8-ch, up to 2 MP

  independent mode: 4-ch, up to 2 MP.

• Face Picture LibraryUp to 64 face picture libraries, up to 300,000 face pictures in list library (each picture ≤ 4 MB, total capacity ≤ 10 GB)
• Face Picture Comparison16-ch;

  Comparison speed: 24 pictures per second

• Video and Audio
• IP Video Input128-ch

  Up to 32 MP resolution

• Incoming Bandwidth1280Mbps
• Outgoing Bandwidth1024Mbps
• Incoming Bandwidth (RAID Mode)640Mbps
• Outgoing Bandwidth (RAID mode)512Mbps
• HDMI 1 Output4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
• HDMI 2 Output4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
• HDMI 3 Output8K (7680 × 4320)/30 Hz, 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
• HDMI 4 Output1080P (1920 × 1080)/60 Hz
• VGA 1 Output1080P (1920 × 1080)/60 Hz
• VGA 2 Output1080P (1920 × 1080)/60 Hz
• Video Output ModeMode 1 (default output mode): simultaneous output with 1080p resolution;

  Mode 2 (simultaneous output): HDMI 1, VGA 1, HDMI 2, VGA 2, HDMI 3, and HDMI 4 provide simultaneous output, the maximum resolution for VGA 1/VGA 2/HDMI 4 is 1080p, the maximum resolution for HDMI 1/HDMI 2/HDMI 3 is 4K;

  Mode 3 (independent output and 8K HDMI 3 output resolution): HDMI 1/VGA 1/HDMI 2/VGA 2, HDMI 3, and HDMI 4 provide independent output respectively. The maximum resolution is 8K + 4K + 1080p;

  Mode 4 (independent output and HDMI 3 output resolution ≤ 4K): HDMI 1/VGA 1, HDMI 2/VGA 2, HDMI 3, and HDMI 4 provide independent output respectively. The maximum resolution is 8K × 4K + 1080p.

• HDMI Input1-ch
• HDMI Loopback1-ch (matching the HDMI input)
• Audio Output2-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

• Decoding
• Decoding FormatH.265/H.265+/H.264/H.264+
• Decoding Capability2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
• Synchronous Playback16-ch
• Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

• Network
• Remote Connection256
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (version 2.2), OTAP
• APIONVIF (profile S/G); SDK; ISAPI
• Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network Interface4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface
• Camera Access ProtocolONVIF (version 2.5), RTSP

• RAID
• RAID TypeRAID 0, RAID 1, RAID 5, RAID 6, RAID 10

• Auxiliary Interface
• SATA16 SATA interfaces; 3.5-inch HDD
• eSATA1 eSATA interface
• CapacityUp to 20 TB capacity for each HDD
• Serial Interface1 RS-232, 2 RS-485 (half-duplex)
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0
• Alarm In/Out32/16

• General
• GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
• Power Supply100 to 240 VAC, 50 to 60 Hz, redundant power supply
• Consumption≤ 100 W (without HDD)
• Working Temperature-10 to 55°C (14 to 131° F)
• Working Humidity10 to 90%
• Dimension (W × D × H)442 mm × 497 mm × 146 mm (17.4 × 19.5 × 5.7 inch)
• Weight≤ 12 kg (without HDD, 28.7 lb.)

• Certification
• Obtained CertificationCE, IC, CB, Rohs, Reach, WEEE, RCM, UKCA, LOA
• CEEN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

  9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
