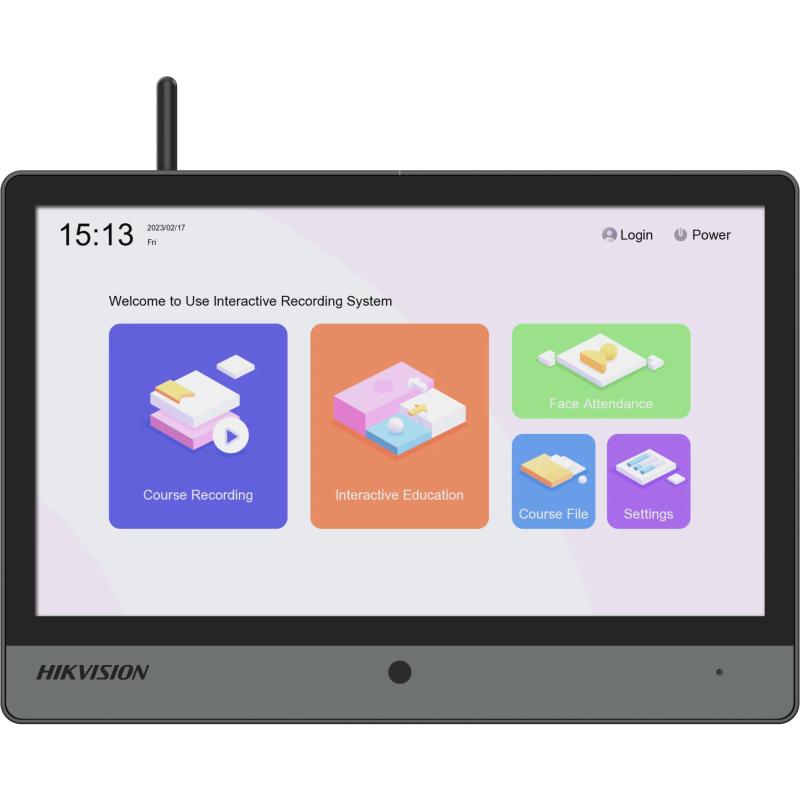

Network Video Recorder HIKVISION DS-9604LNI-V/B12

Education and sharing system

• Three live view control views are provided: movie mode, picture-in-picture mode, and multi-screen mode
• Auto live view control realizes automatic switch of teacher image, student image, and multimedia image, which helps to meet the demand of daily teaching requirement
• ACC format audio encoding technology, up to 48 KHz audio input sampling rate, and internal sound mixing feature provide high audio quality
• Synchronously collect the teacher image, student image, and multimedia image via HDMI input
• Real-time encoding for all cameras with up to 1080p resolution
• Support setting different resolution, frame rate, and bitrate for three streams, including main stream, sub-stream, and third stream
• Support searching, playback, and downloading courses by keywords
• Support publishing courses to FTP server by pressing the publish button on front panel
• Support manual live view control, RTMP live view, playback course, and configure course plan in remote client or platform
• Support RTMP multimedia



• Video and Audio
• IP Video Input5-ch
• HDMI 1 Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz



• HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI Input1-ch; 4K (3840 × 2160)/30 Hz, 1920 × 1080/60Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1440 × 900/60 Hz, 1366 × 768/60 Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, 800 × 600/60 Hz
• HDMI Loopback1-ch (matching HDMI video in)
• LCD Output15.6″ TFT LCD FHD (1920 × 1080)

  Support touch screen

• Audio Output1-ch dual track of 3.5 mm connector

  1-ch dual track of green connector

  2-ch dual track of HDMI interface

• Audio Input1-ch dual track of 3.5 mm line in

  1-ch dual track of 3.5 mm mic in

  2-ch single track of green connector;

  1-ch dual track of HDMI in

• Audio Sampling Rate48 KHz

• Recording
• Video CompressionH.265/H.264
• Encoding ResolutionMain stream: 8MP/4MP/1080p/720p/WD1/4CIF/VGA/CIF

  Sub-stream: 540p/WD1/4CIF/CIF

  Only M1 direct channel supports 8 MP and 4 MP

• Frame Rate1 to 25 fps
• Video Bitrate32 Kbps to 16 Mbps
• Stream TypeVideo & Audio, Video
• Audio CompressionAAC
• Audio Bitrate128 Kbps

• Decoding
• Decoding FormatH.265/H.264/MJPEG
• Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Decoding Capability8-ch@1080p (25 fps, 5-ch for camera connection, 3-ch for interactive meeting)
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
• Synchronous playback1-ch
• Dual-streamSupport

• Network
• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface2, 1 RJ25 10M/100M/1000M Ethernet interface and 1 switch interface for PC/ops use

• PoE
• Interface4-ch, RJ45 10M/100M self-adaptive Ethernet interface
• PowerEach interface ≤ 30 W, total power ≤ 65 W
• StandardIEEE802.3af/at

• Auxiliary Interface
• SATA1 SATA interface
• Capacity1 built-in 2.5-inch 1 TB SATA hard disk
• Serial Interface1 RS-485, full duplex
• USB Interface2 × USB 2.0, 1 × USB 3.0

• General
• Power Supply48 VDC, 2.5 A
• Consumption≤ 120 W (with HDD)
• Working Temperature-10 °C to 45 °C (14 °F to 113 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)378 × 40 × 262 mm (14.8 × 1.6 × 10.3 inch)
• Weight≤ 4.0 kg (≤ 8.8 pound)

• Certification
• CEEN50130-4, EN 61000-3-2,EN 61000-3-3,EN 55032
