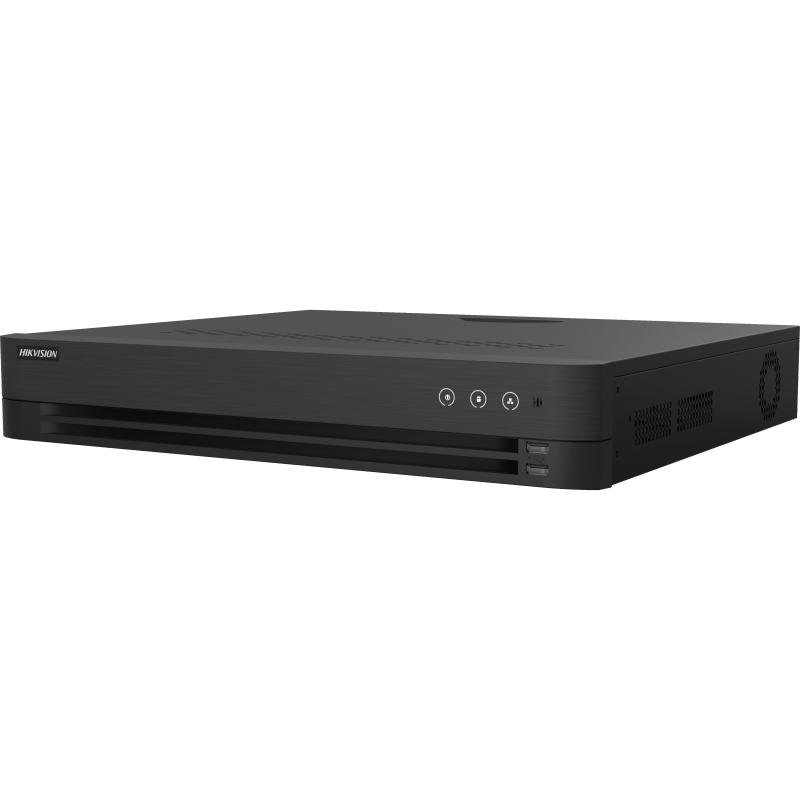

Network Video Recorder HIKVISION DS-7716NI-Q4

16-ch 1.5U 4K NVR

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 2-ch @ 4MP or 6-ch @ 1080P decoding capacity
• 1 HDMI and 1 VGA interfaces: simultaneous video output
• Up to 160 Mbps incoming bandwidth
• 4 HDDs for continuous video recording

• Video and Audio
• IP Video Input

  16-ch

  Up to 8 MP resolution

• Incoming Bandwidth160 Mbps
• Outgoing Bandwidth80 Mbps
• HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

• Decoding
• Decoding FormatH.265/H.265+/H.264/H.264+
• Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback16-ch
• Decoding Capability

  1-ch@8 MP (30 fps)/6-ch@1080p (30 fps)

  *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.726

• Network
• Remote Connection64
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• Serial Interface1 RS-485 (half-duplex), 1 RS-232
• SATA4, SATA interface
• CapacityUp to 8 TB capacity for each disk
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/Out16/4

• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 15 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10 % to 90 %
• Dimension (W × D × H)440 × 397 × 75 mm (17.3″ × 15.6″ × 3.0″)
• Weight≤ 5 kg (without HDD, 11 lb.)

• Certification
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
