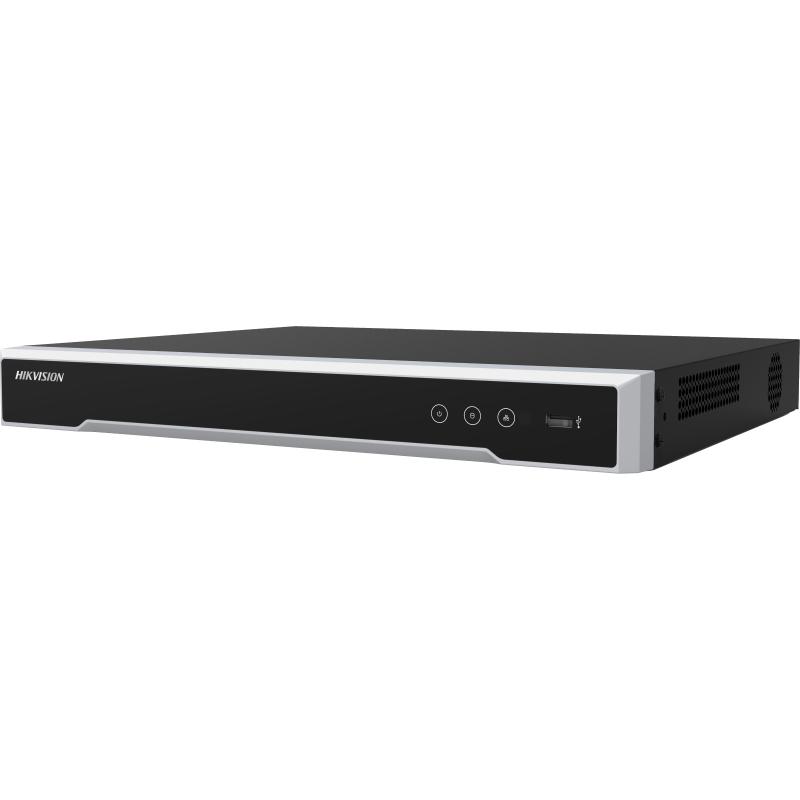

Network Video Recorder HIKVISION DS-7616NI-Q2/16P

16-ch 1U 16 PoE 4K NVR

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 160 Mbps incoming bandwidth

• Motion Detection 2.0
• Human/Vehicle Analysis4

• Video and Audio
• IP Video Input16-ch
• HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Incoming Bandwidth160 Mbps
• Outgoing Bandwidth80 Mbps
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

• Decoding
• Decoding FormatH.265+,H.265,H.264+,H.264
• Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
• Synchronous playback16-ch
• Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

• Network
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• PoE
• Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤ 150W
• StandardIEEE 802.3 af/at

• RAID
• RAID TypeNo

• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 8TB capacity for each disk
• USB Interface2 × USB 2.0

• General
• Power Supply100-240V～, 50/60Hz, 3.2A MAX
• Consumption≤ 15W
• Working Temperature-10 to +55º C (+14 to +131º F)
• Working Humidity10 to 90 %
• Chassis1U chassis
• Dimension (W × D × H)385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″)
• Weight≤ 2.6 kg (5.7 lb)
