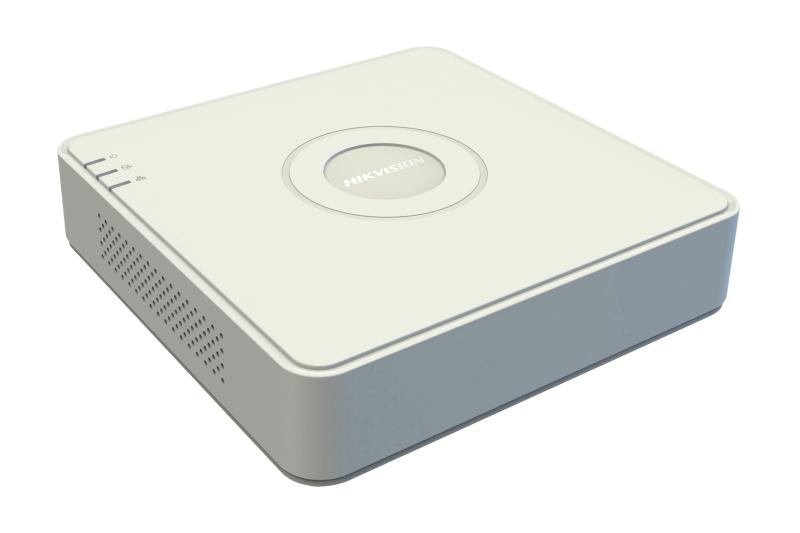

Network Video Recorder HIKVISION DS-7108NI-Q1

8-ch Mini 1U NVR

• H.265+/H.265/H.264+/H.264 video compression
• Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
• Up to 8-ch network camera inputs
• Up to 4-ch 1080p decoding capability
• HDMI and VGA simultaneous output

• Video and Audio
• IP Video Input8-ch

  Up to 6 MP resolution

• Incoming Bandwidth60 Mbps
• Outgoing Bandwidth60 Mbps
• HDMI Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output

• Decoding
• Decoding FormatH.265+/H.265/ H.264+/H.264
• Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback4-ch
• Decoding Capability4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
• Stream TypeVideo, Video & Audio

• Network
• Remote Connection16
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
• Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 6TB capacity for each disk
• Alarm In/OutN/A
• USB InterfaceRear panel: 2 × USB 2.0

• General
• Power Supply12 VDC, 1.5 A
• Consumption≤ 10 W
• Working Temperature-10 to +55º C (+14 to +131º F)
• Working Humidity10% to 90%
• Dimension (W × D × H)200 × 200 × 48 mm (7.9″ × 8.1″ × 1.9″)
• Weight≤ 1 kg (2.2 lb)

• Certification
• CEEN50130-4, EN 61000-3-2,EN 61000-3-3
