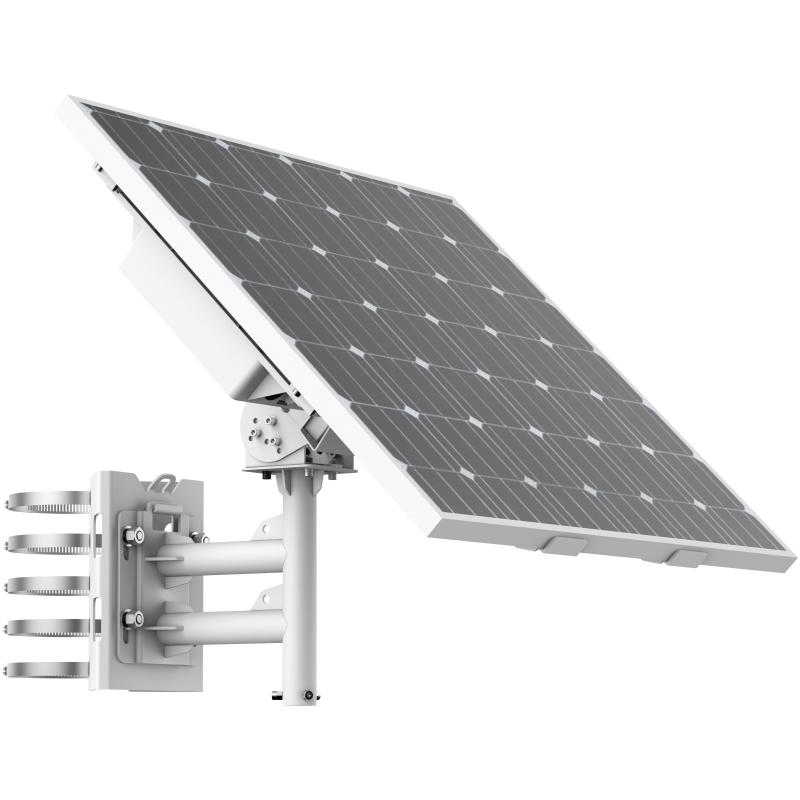

CAMERA HIKVISION DS-2XS6K01-C36S80

Solar Power Modules

• 80 W photovoltaic panel, 360 Wh chargeable lithium battery
• Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
• Water and dust resistant (IP66)

• Interface
• RS-4851 RS-485 (half duplex, connect to Solar Power 4G Network Camera Kit )
• Power Output9 to 12.6 VDC, max. 30 W, 2 × Ø5.5 mm coaxial power plugs

• General
• Dimension640.4 mm × 735.9 mm × 760 mm (25.21″ × 28.97″ × 29.92″) (Max. size after it is completely assembled)
• Package Dimension862 mm × 352 mm × 762 mm (33.9″ × 13.9″ × 30″)
• WeightApprox. 24 kg (52.9 lb.)
• With Package WeightApprox. 30.005 kg (66.1 lb.)

• Battery
• Battery TypeLithium
• Capacity360 Wh (90 Wh for each battery)
• Battery Voltage10.8 V
• Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F)Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
• Battery LifeMore than 500 cycles
• Battery WeightApprox. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

• Approval
• EMCCE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7)
• SafetyCB (IEC 62368-1:2014+A11)
• EnvironmentCE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
• ProtectionCamera: IP66 (IEC 60529-2013)Wind resistance 12 level, up to 40 m/s wind speed resistance
