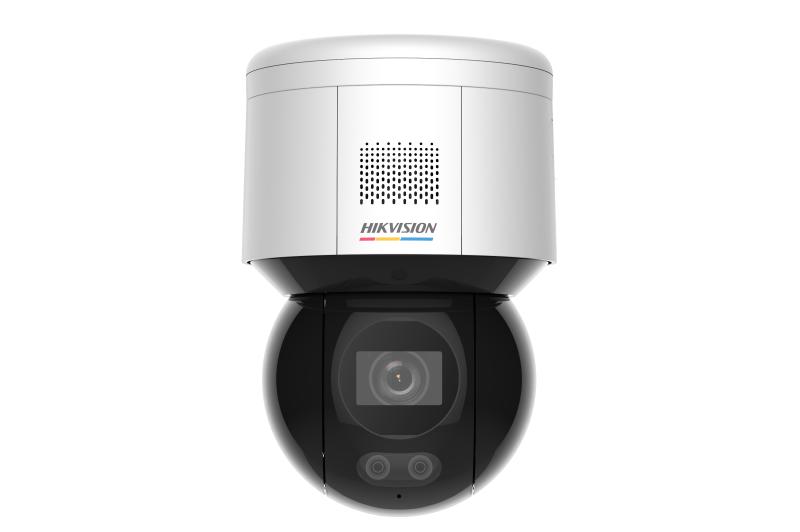

CAMERA HIKVISION DS-2DE3A400BW-DE/W(T5)

3-inch 4 MP ColorVu Wi-Fi Mini PT Dome Network Camera

• Accurate human and vehicle target classification and alarm, and face capture based on deep learning hardware and algorithm
• Face capture: automatic selection of best shot; up to 5 faces detected and captured at the same time
• Linked audible and visual alarm. Built-in microphone and speaker
• Up to 2560 × 1440 @ 30 fps
• Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
• 24/7 colorful imaging with low power consumption. Up to 30 m white light distance
• 120 dB WDR, 3D DNR, HLC
• IP66; PoE



• Camera
• Image Sensor1/1.8″ progressive scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
• Shutter Speed1/1 to 1/30,000 s
• Day & Night24/7 colorful imaging
• Zoom16x digital

• Lens
• Focal Length4 mm
• FOV

  Horizontal field of view: 88.7°

  Vertical field of view: 46.5°

  Diagonal field of view: 105.0°

• ApertureF1.0

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeWhite Light Distance: up to 30 m

• PTZ
• Movement Range (Pan)350°
• Movement Range (Tilt)0° to 90°
• Pan SpeedPan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
• Tilt SpeedTilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
• Proportional PanYes
• Presets300
• Preset FreezingYes
• Park ActionPreset, patrol scan
• 3D PositioningYes
• Scheduled TaskPreset, patrol scan, dome reboot, dome adjust, aux output
• Power-off MemoryYes

• Video
• Main Stream

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

  60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264/MJPEG

• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region of Interest (ROI)8 fixed regions for each stream

• Audio
• Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
• Environment Noise FilteringYes

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• Simultaneous Live ViewUp to 20 channels
• APIISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP
• User/HostUp to 32 users. 3 user levels, administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• Network StorageNAS (NFS, SMB/ CIFS)
• ClientiVMS-4200,Hik-Connect,*Wi-Fi connection with Hik-Connect directly is not possible
• Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+

• Wireless (Wi-Fi)
• Encryption Mode64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
• Wi-Fi ProtocolsIEEE802.11b, 802.11g, 802.11n
• Frequency Range2.4 GHz -2.4835 GHz
• Channel Bandwidth20/40 MHz
• Modulation

  802.11b: CCK, DQPSK, DBPSK

  802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK

  802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK

• Transfer Rate11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps
• Wireless RangeUp to 50 m

• Image
• Image Parameters SwitchYes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Day/Night SwitchDay, night, auto, scheduled-switch
• Wide Dynamic Range (WDR)120 dB WDR
• SNR＞ 52 dB
• DefogDigital defog
• Image EnhancementBLC, HLC, 3D DNR
• Privacy MaskUp to 24 masks (8 masks for each scene)
• Regional ExposureYes

• Interface
• Ethernet Interface1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)
• On-board StorageBuilt-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB
• Built-in Speaker1 built-in speaker
• Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
• Alarm1 input, 1 output
• RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• ResetYes
• Power Output12 VDC; < 60 mA

• Event
• Basic EventVideo tampering alarm, motion detection, alarm input, alarm output, exception
• Smart EventLine crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection
• LinkagePreset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing

• Deep Learning Function
• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

• Face CaptureDetects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture

• General
• Power

  12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A

  Max. 16 W (including max. 4 W for white light)

• Dimension179.3 mm × 120 mm × 182 mm (7.06″ × 4.72″ × 7.71″)
• WeightApprox. 1.125 kg (2.48 lb.)
• Operating ConditionHumidity: ≤ 90%, temperature: -30℃ to 65℃ (-22°F to 149°F)
• General FunctionMirror, password protection, watermark, IP address filter
• DemistYes

• Approval
• ProtectionIP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
