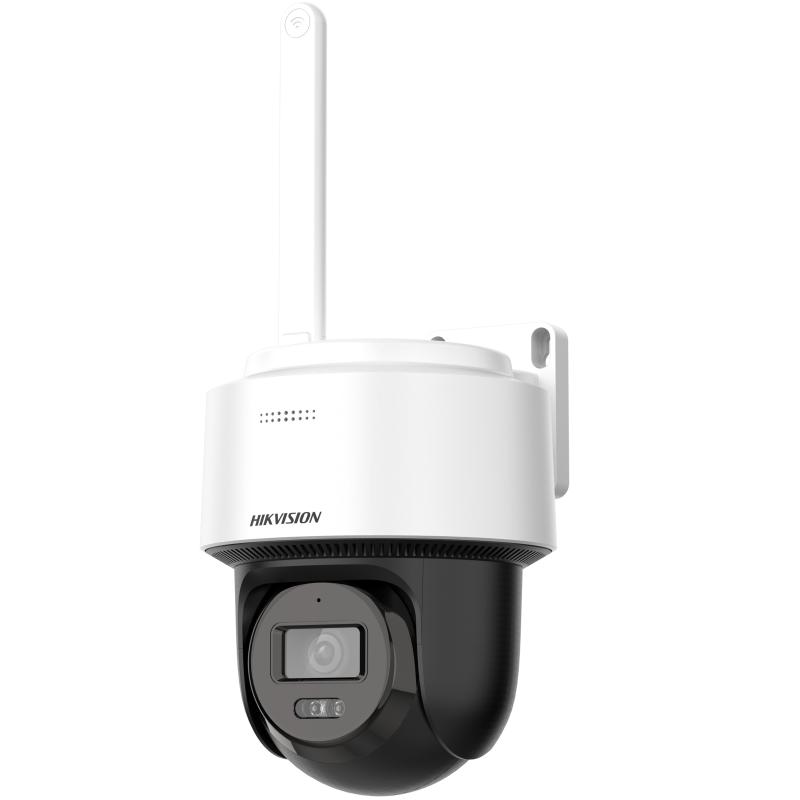

CAMERA HIKVISION DS-2DE2C400MWG/W

4 MP Fixed Outdoor Smart Hybrid-light WIFI PT Network Camera (Connect to NVS)

• High quality imaging with 4 MP resolution
• Support Wi-Fi 6
• Smart Hybrid Light: advanced technology with long range
• Built-in microphone and speaker, support two-way audio
• Support Human Detection and Auto-tracking Lite
• Water and dust resistant (IP66)

• Camera
• Image Sensor1/2.7″ Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001Lux @(F1.6, AGC ON), 0 Lux with IR

• Lens
• Focal Length2.8 mm,4 mm
• FOV2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°,4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°
• ApertureF1.6

• Illuminator
• Supplement Light TypeIR, White Light
• Supplement Light RangeIR distance: up to 25 m,White light distance: up to 25 m
• IR Wavelength850 nm

• PTZ
• Movement Range (Pan)0° to 345°
• Movement Range (Tilt)0° to 80°
• Pan SpeedUp to 25°/s
• Tilt SpeedUp to 20°/s
• Power-off MemoryYes

• Video
• Main Stream

  50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 20 fps (768 x 432)

  60 Hz: 20 fps (768 x 432)

• Video CompressionH.265, H.264, MJPEG
• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile

• Audio
• Audio CompressionG.711ulaw/AAC-LC
• Audio Bit Rate

  AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps

  G.711ulaw: 64 Kbps

• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes

• Wireless (Wi-Fi)
• Wi-Fi ProtocolsIEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.11ax
• Frequency Range2.4 GHz to 2.4835 GHz
• Channel Bandwidth20/40 MHz

• Network
• ProtocolsIPv4/IPv6, HTTP, QoS, SMTP, NTP, RTSP, RTP, RTCP, TCP/IP, UDP, DHCP, Bonjour, SNMP, DNS, DDNS
• APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Client

  Wired network: Hik-Connect, iVMS-4200

  Wi-Fi: iVMS-4200

  *Wi-Fi connection with Hik-Connect directly is not possible

• Image
• Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, 3D DNR
• Privacy Mask4 programmable rectangle privacy masks

• Interface
• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Built-in Microphone1 built-in microphone
• On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Speaker1 built-in speaker

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• LinkageNotify surveillance center, send email, trigger recording, trigger capture, audible warning

• General
• Power

  12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug

  *A switching adapter is included in the package.

• Dimension131.9 mm × 163.9 mm × 312.6 mm (5.19″ × 6.45″ × 12,31″)
• Weight

  Weight: 600 g (1.32 lb.)

  With Package Weight: 900 g (2.0 lb.)

• MaterialPlastic
• Operating Condition-30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
• General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
• LanguageEnglish, Ukrainian

• Approval
• ProtectionIP66 (IEC 60529-2013)
