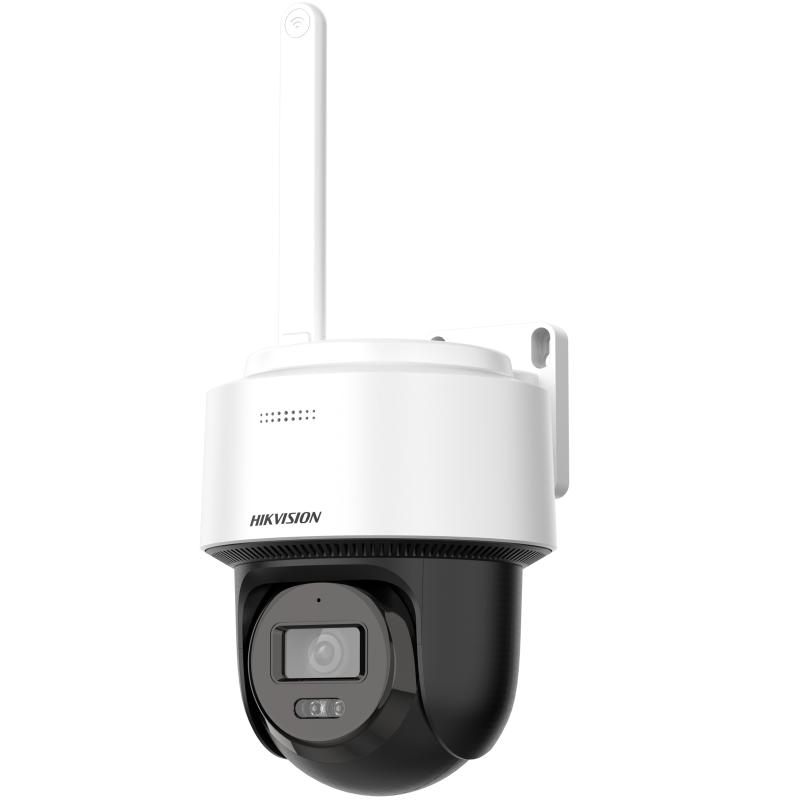

CAMERA HIKVISION DS-2DE2C400IWG/W

4 MP Fixed Outdoor IR WIFI Stand Alone PT Network Camera

• High quality imaging with 4 MP resolution
• Support Human Detection, Vehicle Detection, and Auto-tracking Lite
• EXIR 2.0, advanced infrared technology with long IR distance
• Hik-Connect cloud service and app for remote management and views of devices
• Built-in microphone and speaker for real-time audio security
• Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
• Water and dust resistant (IP66)

• Camera
• Image Sensor1/2.9″ Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.01 Lux @ (F1.6, AGC ON),B/W: 0.005 Lux @ (F1.6, AGC ON),0 Lux with IR

• Lens
• Focal Length2.8 mm, 4 mm
• FOV

  2.8 mm,horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108°

  4 mm, horizontal FOV 74°, vertical FOV 40°, diagonal FOV 87°

• ApertureF1.6

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeIR distance: up to 30 m
• IR Wavelength850 nm

• PTZ
• Movement Range (Pan)0° to 345°
• Movement Range (Tilt)0° to 80°
• Pan SpeedUp to 25°/s
• Tilt SpeedUp to 20°/s

• Video
• Main Stream

  50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288)

  60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)

• Video Compression

  Main stream: H.265/H.264,

  Sub-stream: H.265/H.264

• Video Bit Rate256 Kbps to 2 Mbps
• H.264 TypeBaseline profile,Main profile,High profile
• H.265 TypeMain profile

• Audio
• Audio CompressionG.711,AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw), 16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz,16 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,UPnP,IGMP,QoS,IPv4,IPv6,UDP,Bonjour,SSL/TLS
• APIONVIF, SDK
• SecurityPassword protection,HTTPS encryption,security audit log,basic and digest authentication for HTTP/HTTPS,TLS 1.1/1.2, WSSE for Open Network Video Interface

• Wireless (Wi-Fi)
• Encryption ModeWPA-PSK/WPA2-PSK
• Wi-Fi ProtocolsIEEE802.11b,IEEE802.11g,IEEE802.11n
• Frequency Range2.412 GHz to 2.472 GHz
• Channel Bandwidth20 MHz
• Modulation

  802.11b: CCK, QPSK, BPSK,

  802.11g: OFDM ,

  802.11n: OFDM

• Transfer Rate11b: up to 54 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps
• Wireless Range

  Up to 50 m

  (The performance varies based on actual environment)

• Image
• Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software
• Wide Dynamic Range (WDR)Digital WDR

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone1 built-in microphone
• On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Speaker1 built-in speaker

• Event
• Basic EventMotion detection (support alarm triggering by specified target type (human and vehicle)), exception
• LinkageUpload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite

• Deep Learning Function
• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggered by specified target types (human and vehicle)

• General
• Power12 VDC ± 10%, 1 A, max. 10 W, Ø2 mm coaxial power plug, reverse polarity protection
• Dimension163.9 mm × 185.8 mm × 131.9 mm (6.45″ × 7.31″ × 5.19″)
• WeightCamera weight: 565 g (1.25 lb.) With package weight: 1020 g (2.25 lb.)
• MaterialPlastic
• Operating Condition-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
• General Functionheartbeat,mirror

• Approval
• EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
• SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
• EnvironmentCE-RoHS (2011/65/EU),WEEE (2012/19/EU)
• ProtectionIP66 (IEC 60529-2013)
