16 MP 180° PanoVu Network Camera

180° splicing image to present all scenes that covered by the camera
Built-in heater, ultra-low temperature start up to -40 ℃ (-40 °F)
Water and dust resistant (IP67) and vandal proof (IK10)
Smart human density counting and public behaviors analysis to increase public area safety

Available models:

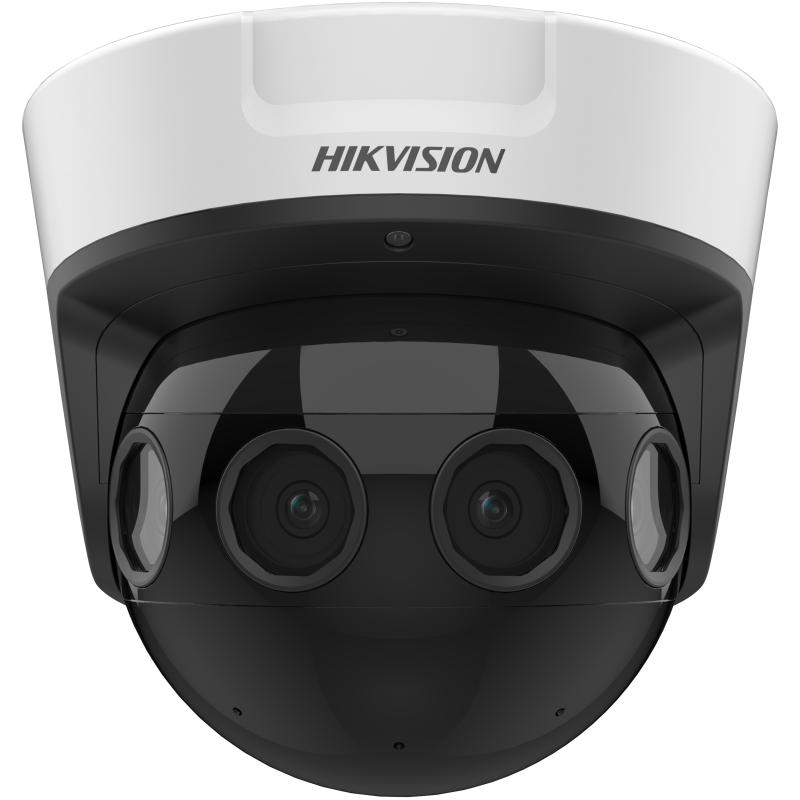

DS-2CD6944G0-IHS(2.8mm)(C)

Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Max. ResolutionPanorama+ePTZ mode: panorama channel: 1920 × 1080; ePTZ channel: 1920 × 1080
Panorama mode: 4800 × 2688
Original mode: 2688 × 1520
Min. IlluminationColor: 0.009 Lux @ (F1.6, AGC ON)
B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time1/25 s to 1/100,000 s
Day & NightIR cut filter. Blue glass module to reduce ghost phenomenon.
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°

Video
Main StreamPanorama+ePTZ mode:
Panorama channel:
50 Hz: 25 fps (1920 × 1080, 960 × 540)
60 Hz: 30 fps (1920 × 1080, 960 × 540)
ePTZ channel:
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Panorama mode:
50 Hz: 25 fps (4800 × 2688, 3840 × 2160, 2688 × 1520)
60 Hz: 30 fps (4800 × 2688, 3840 × 2160, 2688 × 1520)
Original mode:
50 Hz: 25 fps (2688 × 1520)
60 Hz: 30 fps (2688 × 1520)
Sub-StreamPanorama mode:
50 Hz: 25 fps (1920 × 1080, 960 × 540)
60 Hz: 30 fps (1920 × 1080, 960 × 540)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264/MJPEG (panorama + ePTZ mode, panorama mode)
Sub-stream: H.265/H.264/MJPEG (original mode)
Video Bit Rate32 Kbps to 64 Mbps
H.264 TypeBaseline Profile/ Main Profile/ High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Target CroppingYes (only panorama mode supports)

Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, ISUP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS1.1, TLS 1.2, TLS1.3
Network StorageNAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200
Web BrowserPlug-in required live view: IE 10, IE 11
Plug-in free live view: Safari 12+
Local service: Chrome 57+, Firefox 52+

Image SettingsRotate mode (only original mode supports), saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC, 3D DNR, Defog, EIS (only the original mode supports)
Privacy Mask4 programmable polygon privacy masks,Only origincal mode supports.
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

Interface
Ethernet Interface1 RJ45 10 M/100 M/1000 M Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card (up to 256 GB)
Audio1 input (line in), 3.5 mm, three-contact, max. input amplitude: 1 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm, three-contact, max. output amplitude: 1 vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-4851 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes

Event
Basic EventMotion detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception, unattended baggage detection,object removal detection (Only panorama mode supports.)
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

General
Power12 VDC, 1.4 A, max. 24 W, three-core terminal block
PoE: 802.3at, 42.5 V to 57 V, 0.5 to 0.4 A
MaterialAluminum alloy
Dimension190 mm × 208 mm × 207 mm (7.5″ × 8.2″ × 8.1″)
Package Dimension340 mm × 261 mm × 293 mm (13.4″ × 10.3″ × 11.5″)
WeightApprox. 3350 g (6.6 lb.)
With Package WeightApprox. 5420 g (11 lb.)
Storage Conditions-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror (onlry original mode and panorama mode supports), password protection, watermark, IP address filter, pixel counter (only panorama mode supports)
HeaterYes

Approval
EMCFCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN 32: 2015, KN 35: 2015
SafetyUL: UL 62368-1
CB: IEC 62368-1:2014+A11
CE-LVD: EN 62368-1:2014/A11:2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1 : 2005
LOA: IEC/EN 60950-1
EnvironmentCE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013, IK10: IEC 62262:2002
