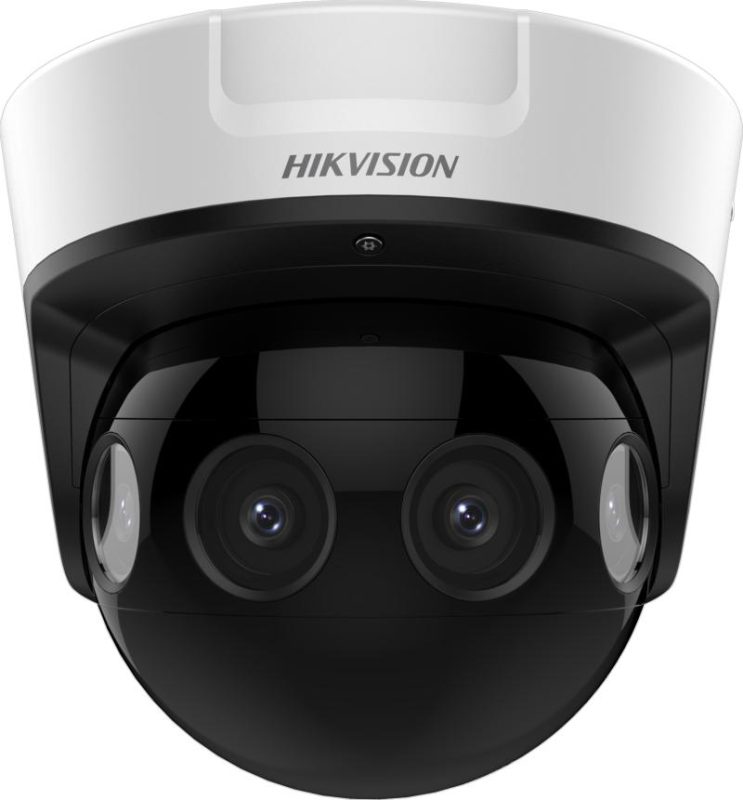

CAMERA HIKVISION DS-2CD6924G0-IHS(/NFC)

8 MP 180° PanoVu Network Camera

• 180° splicing image to present all scenes that covered by the camera
• Built-in heater, ultra-low temperature start up to -40 °C
• Water and dust resistant (IP67) and vandal proof (IK10)
• Multiple display modes available: panorama, original, panorama + ePTZ, and divided panorama

• Camera
• Image Sensor1/1.8″ Progressive Scan CMOS
• Max. Resolution

  2.8 mm

  Panorama+ePTZ mode: panorama channel: 1920 × 1080; ePTZ channel: 1920 × 1080

  Panorama mode: 3840 × 2160

  Original mode: 1920 × 1080

  6 mm

  Panorama+ePTZ mode: panorama channel: 2400 × 400; ePTZ channel: 1920 × 1080

  Panorama mode: 6480 × 1080

  Original mode: 1920 × 1080

• Min. IlluminationColor: 0.003 Lux @ (F1.2, AGC ON); B/W: 0.0018 Lux @ (F1.6, AGC ON),0 Lux with IR
• Shutter Time1/25 s to 1/100,000 s
• Day & NightIR cut filter. Blue glass module to reduce ghost phenomenon.
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°

• Lens
• Lens TypeFixed focal lens, 2.8 mm and 6 mm optional, four lenses
• Focal Length & FOV

  2.8 mm: horizontal FOV 180°, vertical FOV 90°

  6 mm: horizontal FOV 180°, vertical FOV 25°

• Lens MountM16
• FocusManual, semi-auto
• ApertureF1.4

• Illuminator
• Supplement Light TypeIR, four IR LEDs
• Supplement Light RangeUp to 20 m
• IR Wavelength850 nm

• Video
• Main Stream

  2.8 mm

  Panorama+ePTZ mode: panorama channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720); ePTZ channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720)

  Panorama mode: 50Hz: 25fps (3840 × 2160 , 2560 × 1440 , 1920× 1080), 60Hz: 30fps (3840 × 2160 , 2560 × 1440 , 1920× 1080)

  Original mode: 50Hz: 25fps (1920× 1080), 60Hz: 30fps (1920× 1080)

  6 mm

  Panorama+ePTZ mode: panorama channel: 50Hz: 25fps (2400 × 400), 60Hz: 30fps (2400 × 400); ePTZ channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720)

  Panorama mode: 50Hz: 25fps (6480 × 1080, 4800 × 800, 3600 × 600), 60Hz: 30fps (6480 × 1080, 4800 × 800, 3600 × 600)

  Original mode: 50Hz: 25fps (1920 × 1080), 60Hz: 30fps (1920 × 1080)

• Sub-Stream

  2.8 mm

  Panorama mode: 50Hz: 25fps (1280 × 720, 640 × 360), 60Hz: 30fps (1280 × 720, 640 × 360)

  6 mm

  Panorama mode: 50Hz: 25fps (2400 × 400, 1920 × 320, 1440 × 240), 60Hz: 30fps (2400 × 400, 1920 × 320, 1440 × 240)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 65 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Target CroppingYes (only panorama mode supports)

• Audio
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour
• Simultaneous Live ViewUp to 20 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS1.0, TLS1.1
• Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• ClientiVMS-4200
• Web BrowserIE8+

• Image
• Image SettingsRotate mode (only the original mode supports), saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, 3D DNR, Defog, EIS (only the original mode supports)
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

• Interface
• Ethernet Interface1 RJ45 10 M/100 M/1000 M Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Audio

  1 input (line in), 3.5 mm 3-section connector, max. input amplitude: 1 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

  1 output (line out), 3.5 mm 3-section connector, max. output amplitude: 1 vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm2 inputs, 2 outputs (max. 24 VDC, 1A)
• RS-4851 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset KeyYes
• Fiber Optical/NFC: FC interface, single mode, single fiber, Tx1310nm/1.25G, Rx1550nm/1.25G, up to 20 km

• Event
• Basic EventMotion detection (only panorama and original modes support), exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

• Deep Learning Function
• People Density

  Without (D) version: Yes (only panorama mode supports)

  With (D) version: No

• General
• Power

  12 VDC, 1.6 A, max. 24 W, three-core terminal block

  PoE: 802.3at, 42.5 V to 57 V, 0.5 to 0.4 A

• MaterialAluminum alloy
• Dimension189.5 × 207.63 × 206.62 mm (7.46″ × 8.17″ × 8.13″)
• Package Dimension340 × 261 × 293 mm (13.4″ × 10.3″ × 11.5″)
• WeightApprox. 3 kg (6.6 lb.)
• With Package WeightApprox. 5 kg (11 lb.)
• Storage Conditions-40 °C to +60 °C (-40 °F to +140 °F), humidity 95% or less (non-condensing)
• Startup and Operating Conditions-40 °C to +60 °C (-40 °F to +140 °F), humidity 95% or less (non-condensing)
• LanguageEnglish
• General FunctionAnti-flicker, heartbeat, mirror (only original mode supports), privacy masks (only original mode supports), password protection, watermark, IP address filter, pixel counter
• HeaterYes

• Approval
• EMC

  FCC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4);

  RCM (AS/NZS CISPR 32:2015);

  IC (ICES-003: Issue 6, 2016);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 60950-1);

  CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);

  BIS (IS 13252 (Part 1): 2010+A1:2013+A2:2015);

  CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

• Environment

  CE-ROHS (2011/65/EU);

  REACH (Regulation (EC) No 1907/2006);

  WEEE (2012/19/EU)

• ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
