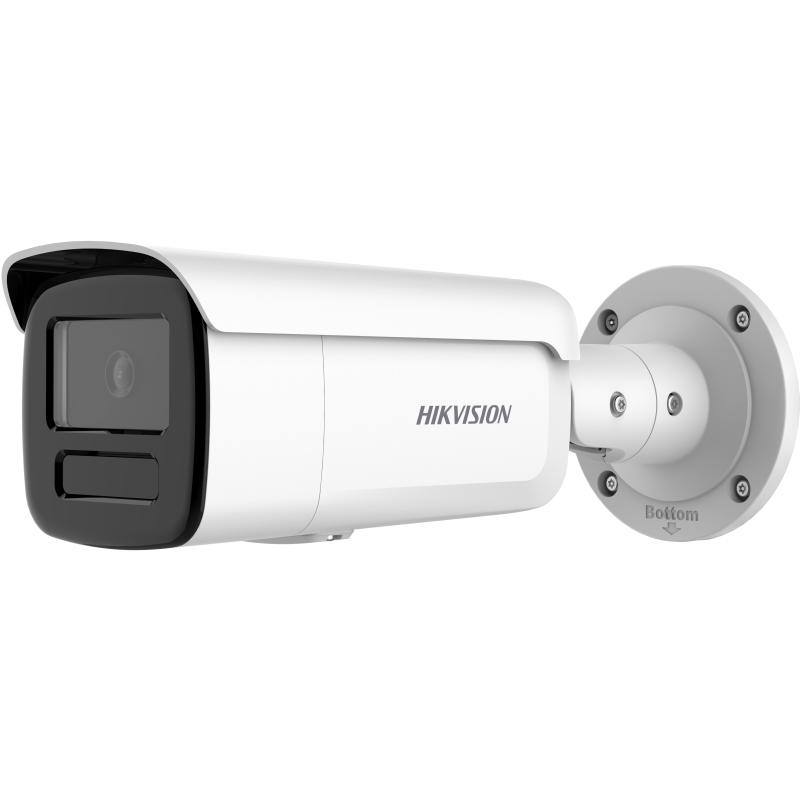

CAMERA HIKVISION DS-2CD2T86G2-4IY
8 MP AcuSense Anti-Corrosion Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Water and dust resistant (IP67)
- Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
Available models:
DS-2CD2T86G2-4IY(2.8mm)(C)
DS-2CD2T86G2-4IY(4mm)(C)
DS-2CD2T86G2-4IY(6mm)(C)
- Camera
- Image Sensor
1/1.8″ Progressive Scan CMOS - Max. Resolution
3840 × 2160 - Min. Illumination
Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR - Day & Night
IR cut filter - Shutter Time
1/3 s to 1/100,000 s - Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Focal Length & FOV
2.8 mm, horizontal FOV 110°, vertical FOV 58°, diagonal FOV 134°
4 mm, horizontal FOV 88°, vertical FOV 50°, diagonal FOV 100°
6 mm, horizontal FOV 59°, vertical FOV 34°, diagonal FOV 67° - Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional - Aperture
F1.6 - Lens Mount
M12 - Iris Type
Fixed
- DORI
- DORI
2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 9 m
4 mm: D: 99 m, O: 39 m, R: 20 m, I: 10 m
6 mm: D: 140 m, O: 55 m, R: 28 m, I: 14 m
- Illuminator
- IR Wavelength
850 nm - Supplement Light Range
Up to 80 m - Smart Supplement Light
Yes - Supplement Light Type
IR
- Video
- Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) - Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) - Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
*Third stream is supported under certain settings. - Video Compression
Main stream: H.265/H.264/H.265+/H.264+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264 - Video Bit Rate
32 Kbps to 16 Mbps - H.264 Type
Baseline Profile,Main Profile,High Profile - H.265 Type
Main Profile - Bit Rate Control
CBR,VBR - Scalable Video Coding (SVC)
H.264 and H.265 encoding - Region of Interest (ROI)
1 fixed region for main stream and sub-stream
- Network
- Simultaneous Live View
Up to 6 channels - API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP - Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets - User/Host
Up to 32 users
3 user levels: administrator, operator, and user - Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) - Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported. - Client
iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect - Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Wide Dynamic Range (WDR)
120 dB - SNR
≥ 52 dB - Privacy Mask
4 programmable polygon privacy masks - Day/Night Switch
Day,Night,Auto,Schedule - Image Enhancement
BLC,HLC,3D DNR - Image Parameters Switch
Yes - Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Interface
- Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port - On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 GB - Reset Key
Yes
- Event
- Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception - Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection - Linkage
Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
- Deep Learning Function
- Face Capture
Yes
- General
- Power
12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W - Material
Front cover: metal, body: metal, bracket: metal - Dimension
286.7 mm × 93.3 mm × 91.2 mm (11.3″ × 3.7″ × 3.6″) - Package Dimension
386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″) - Weight
Approx. 1270 g (2.8 lb.) - With Package Weight
Approx. 1510 g (3.3 lb.) - Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) - Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) - General Function
Heartbeat,anti-flicker,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,privacy mask - Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015 - Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017 - Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006 - Protection
IP67: IEC 60529-2013 - Anti-Corrosion Protection
NEMA 4X (NEMA 250-2018)
