CAMERA HIKVISION

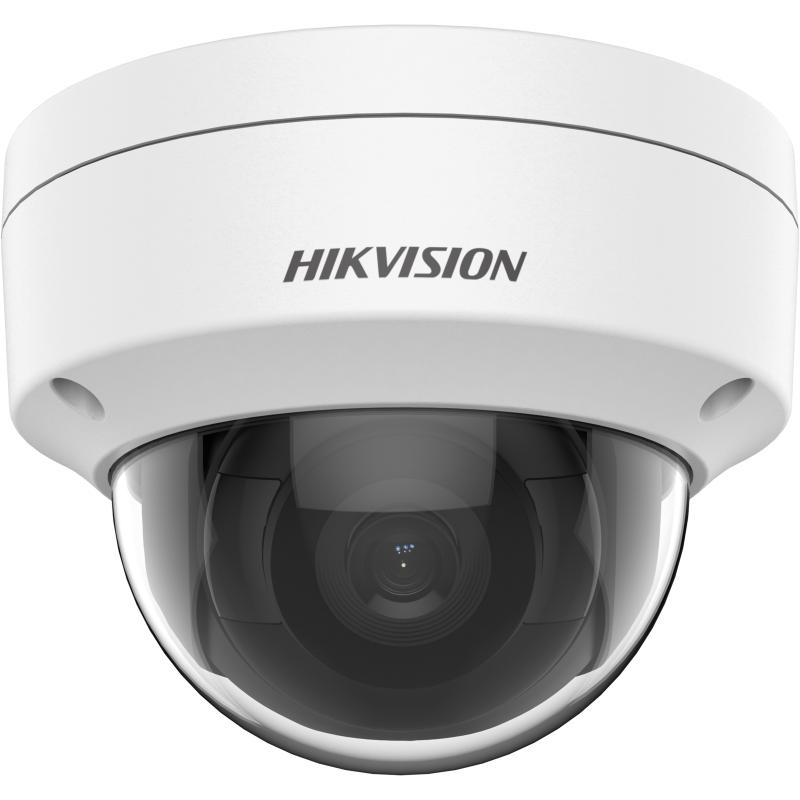

DS-2CD1143G0-I
4MP Fixed Dome Network Camera
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Water and dust resistant (IP67) and vandal resistant (IK10)
- EXIR 2.0: advanced infrared technology with long IR range
Available models:
DS-2CD1143G0-I(4mm)
DS-2CD1143G0-I(2.8mm)
DS-2CD1143G0-I(2.8mm)(C)
DS-2CD1143G0-I(4mm)(C)
- Camera
-
Image Sensor
1/3″ progressive scan CMOS -
Max. Resolution
2560 × 1440 -
Min. Illumination
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR -
Shutter Time
1/3 s to 1/100, 000 s -
Day & Night
IR cut filter -
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°
- Lens
-
Focal Length & FOV
2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°
4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3° -
Lens Mount
M12 -
Focus
Fixed -
Aperture
F2.0 -
Lens Type
Fixed focal lens, 2.8 and 4 mm optional -
Iris Type
Fixed
- Illuminator
-
Supplement Light Type
IR -
Supplement Light Range
Up to 30 m -
IR Wavelength
850 nm -
Smart Supplement Light
Yes
- Video
-
Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
30 fps (1920 × 1080, 1280 × 720) -
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) -
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG -
Video Bit Rate
32 Kbps to 8 Mbps -
H.264 Type
Baseline Profile/Main Profile/High Profile -
H.265 Type
Main Profile -
Region of Interest (ROI)
1 fixed region for main stream
- Network
-
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS -
Simultaneous Live View
Up to 6 channels -
API
Open Network Video Interface, ISAPI -
User/Host
Up to 32 users. 3 levels: administrator, operator and user -
Client
iVMS-4200, Hik-Connect -
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
-
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser -
Day/Night Switch
Auto, Schedule, Day, Night -
Wide Dynamic Range (WDR)
120 dB -
Image Enhancement
BLC, 3D DNR
- Interface
-
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
-
Basic Event
Motion detection, video tampering alarm, exception -
Linkage
Upload to FTP, notify surveillance center, send email
- General
-
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W -
Material
Base: metal, cover: plastic -
Dimension
Ø111 mm × 82.4 mm (Ø 4.4″ × 3.2″) -
Package Dimension
134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″) -
Weight
Approx. 360 g (0.8 lb.) -
With Package Weight
Approx. 560 g (1.2 lb.) -
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) -
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) -
Language
English, Ukrainian -
General Function
Anti-banding, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Approval
-
EMC
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) -
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) -
Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) -
Protection
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
